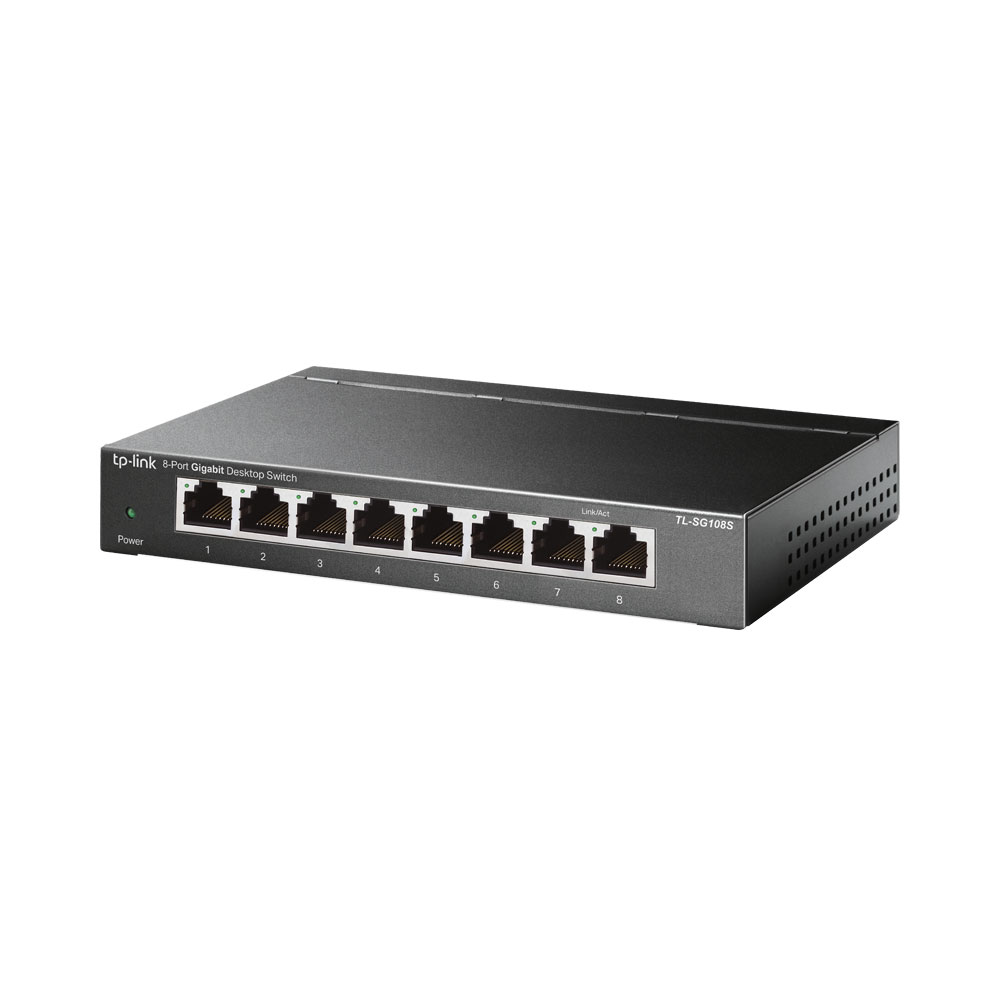

TP-Link 8-PORT GIGABIT DESKTOP SWITCH

Product Description

The TP-Link 8-PORT GIGABIT DESKTOP SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function

Technical Specifications:
FEATURES

• 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration needed

SPECIFICATIONS

HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
• Interface: 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Fan Quantity: Fanless
• Power Consumption: Maximum: 3.31W (220V/50Hz)
• External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
• Buffer Size: 1.5Mb
• LED Indicator: System Power
• Link/Act indicators per port built into each RJ-45 port
• Dimensions (W x D x H): 158 x 101 x 25mm

PERFORMANCE
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 16KB

SOFTWARE FEATURES
• Advanced Features: Green Technology, saving power up to 82%
• 802.3X Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Transfer Method: Store and Forward

OTHERS
• Certification: CE, FCC ,RoHS
• EnvironmentOperating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10% ~ 90%, non-condensing
• Storage Humidity: 5%~90% non-condensing
