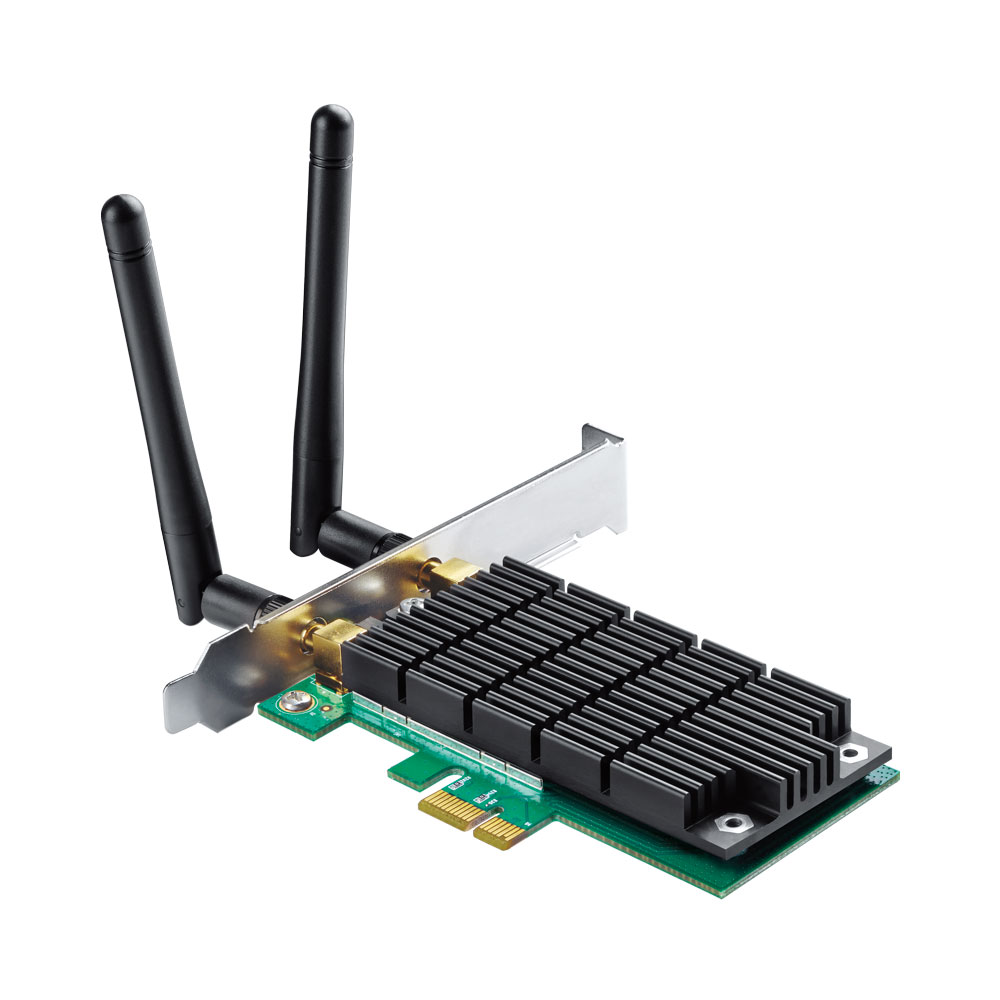

TP-Link AC1200 WIRELESS DUAL BAND PCI EXP CARD

Product Description

The TP-Link AC1200 WIRELESS DUAL BAND PCI EXP CARD is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Easy Installation – Plug the adapter into an available PCIe slot to upgrade your desktop
• High Speed Wi-Fi – Up to 1,200Mbps Wi-Fi speeds (867Mbps on 5.0GHz band and 300Mpbs on 2.4GHz band)
• 802.11ac Dual-Band – 3-Times faster than the 802.11n standard, perfect for high-intensity network usage
• Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
• Multiple-Size Brackets – Low-profile and full-height brackets are both provided, suitable for all PCs

Technical Specifications:
FEATURES

• Easy Installation – Plug the adapter into an available PCIe slot to upgrade your desktop
• High Speed Wi-Fi – Up to 1,200Mbps Wi-Fi speeds (867Mbps on 5.0GHz band and 300Mpbs on 2.4GHz band)
• 802.11ac Dual-Band – 3-Times faster than the 802.11n standard, perfect for high-intensity network usage
• Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
• Multiple-Size Brackets – Low-profile and full-height brackets are both provided, suitable for all PCs
• 2×2 MIMO – Users can easily access high-speed wireless connection
• Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

SPECIFICATIONS

WIRELESS PERFORMANCE
• AC1200 Dual-Band Wi-Fi: Up to 867Mbps on 5.0GHz and 300Mbps on 2.4GHz
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• 2×2 MIMO Technology: Improved Throughput and Stability
• Wireless Modes: Infrastructure Mode
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, 802.1X

HARDWARE
• Interface: PCI Express
• Antennas: 2× Dual-Band Detachable High-Gain Antennas
• Dimensions: 120.8 × 115.2 × 21.5mm

TRANSMISSION POWER
• 5.0GHz: Up to 23dBm (CE)
• 2.4GHz: Up to 20dBm (CE)

COMPATIBILITY
• Operating System: Windows 10/8.1/8/7/XP (32/64-bit)

ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
