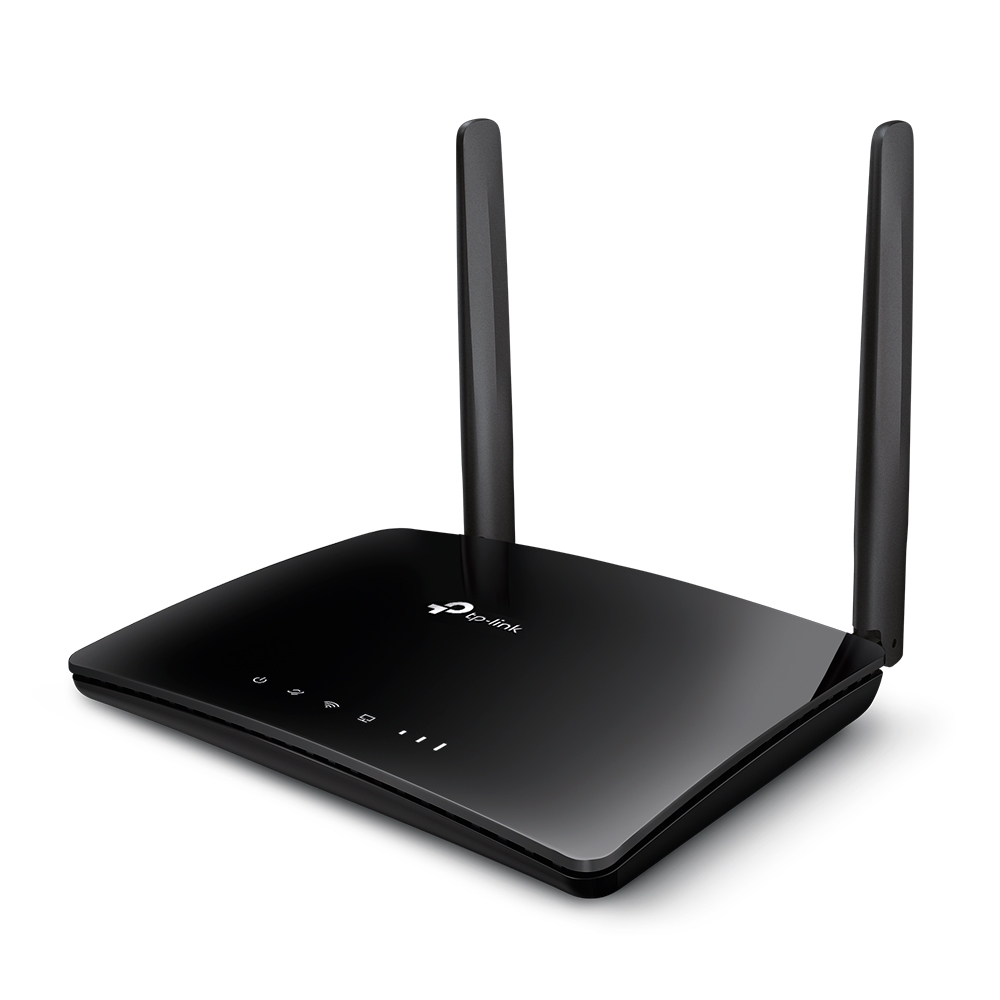

TP-Link AC750 DUAL BAND 4G LTE

Product Description

The TP-Link AC750 DUAL BAND 4G LTE is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
• Powerful, integrated antennas provide stable wireless connections and better coverage
• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Technical Specifications:
FEATURES

• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
• Powerful, integrated antennas provide stable wireless connections and better coverage
• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot, 2× External SMA-F Antenna Interface
• Button: WPS/Wi-Fi Button, Reset Button
• External Power Supply: 12V/1A
• Dimensions ( W x D x H ): 174 × 124.5 × 33.5mm
• Antenna: 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
• Reception Sensitivity: 5 GHz:
– 11a 54M: -78 dBm
– 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
– 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
– 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
• 2.4 GHz:
– 11g 54M: -74 dBm
– 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
– 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Network Type
– 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
– TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
– 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
• Quality of Service: Prioritises network traffic by device or application
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management Features: Access Control, Local Management, Remote Management, reboot schedule
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP, TP-Link DDNS
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
• VPN Server: PPTP VPN, OpenVPN

OTHERS
• Certification: CE, RoHS
• Environment: Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~60°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
