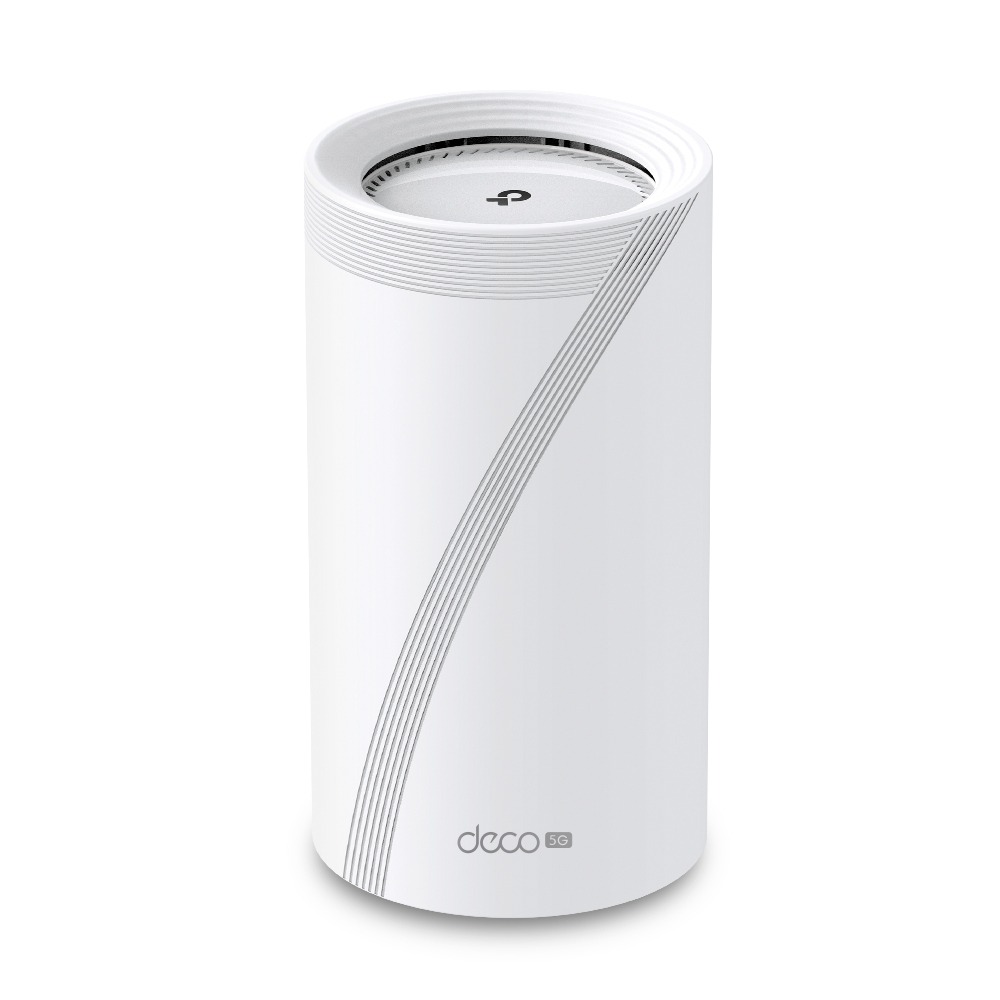

TP-Link DECO 5G BE9300 WHOLE HOME MESH WI-FI

Product Description

The TP-Link DECO 5G BE9300 WHOLE HOME MESH WI-FI is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 11 Gbps Tri-Band Wi-Fi
• 2.5Gbps Wired Connections
• Wireless and Wired Combined Backhaul
• Multi-Link Operation (MLO)
• Works on the 6GHz Band

Technical Specifications:
FEATURES
• 11 Gbps Tri-Band Wi-Fi
• 2.5Gbps Wired Connections
• Wireless and Wired Combined Backhaul
• Multi-Link Operation (MLO)
• Works on the 6GHz Band
• TP-Link HomeShield
• Universal Compatibility

WIRELESS
• Standards and Protocols: IEEE 802.11be/ax 6GHz, IEEE 802.11be/ax/ac/n/a 5GHz, IEEE 802.11be/ax/n/b/g 2.4GHz
• Wi-Fi Speeds: 6GHz – 5765Mbps (802.11be), 5GHz – 4324Mbps (802.11be), 2.4GHz – 688 Mbps (802.11be)
• Wi-Fi Range:
– Broader Whole Home Coverage
– TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
– AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home,
– 4× High-Performance Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas
– Tri-Band: A newly-opened 6 GHz band brings more bandwidth and faster speeds
• Wi-Fi Capacity: Very High: Tri-Band – Distribute devices to different bands for optimal performance, 2×2 MU-MIMO – Simultaneously communicates with multiple MU-MIMO clients, OFDMA – Simultaneously communicates with multiple Wi-Fi 7 clients, 6 Streams – More than enough bandwidth for connected devices
• Working Modes: Router Mode, Access Point Mode
• Advanced Features: Multi-Link Operation (MLO), 320MHz Channel, 4K-QAM, Multi-RUs, Works with Alexa and Google Assistant

SECURITY
• Network Security: SPI Firewall, Access Control, HomeShield Security – Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
• Guest Network: 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN Server, PPTP VPN Server, L2TP/IPSec VPN Server
• VPN Client: OpenVPN Client, PPTP VPN Client, L2TP/IPSec VPN Client
• Wi-Fi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal

HARDWARE
• Ethernet Ports: 4× 2.5 Gbps (Per Deco Unit, Supports WAN/LAN auto-sensing)
• Buttons: Reset Button, WPS

SOFTWARE
• Advanced Features: Reboot Schedule, Tapo/Kasa Onboarding, IoT network & Device Isolation, Static Routing Function, Node/Band Connection Preference
• Protocols: IPv4, IPv6
• Service Kits: HomeShield
• Parental Controls: HomeShield Parental Controls, YouTube Restriction, SafeSearch, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: HomeShield QoS – QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link
• Management Features: Deco App

OTHER
• Network Services Enabled by Default
• Web Server:
– Port 80/443 – Protocol: TCP
• DNS:
– Port 53 – Protocol TCP & UDP
DHCP Server:
Port 67 – Protocol UDP
• App management:
– Port 22 – Protocol TCP
– Port 20001 – Protocol TCP
– Port 30001 – Protocol TCP
– Port 20002 – Protocol UDP

PHYSICAL
Dimensions (W×D×H): 107.5 × 107.5 × 176mm

OTHERS
• Certifications: CE, FCC, RoHS
• Environment:
– Operating Temperature: 0°C~40°C
– Storage Temperature: -40°C~60°C
– Operating Humidity: 10%~90% RH
– Storage Humidity: 5%~90% RH
