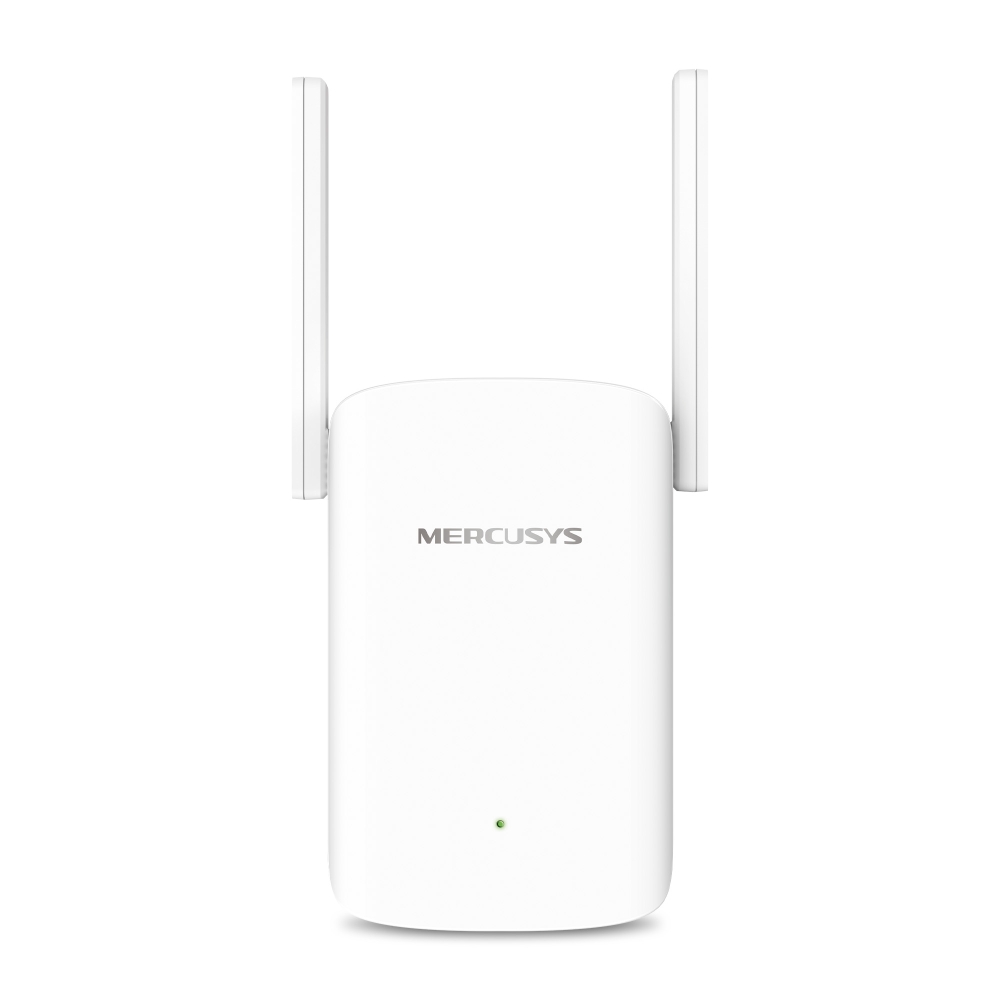

TP-Link MERCUSYS AX1500 WI-FI 6 RANGE EXTENDER

Product Description

The TP-Link MERCUSYS AX1500 WI-FI 6 RANGE EXTENDER is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Dual-Band Speeds up to 1,500Mbps – 1,201Mbps on 5.0GHz and 300Mbps on 2.4GHz
• Wi-Fi 6 Technology – Improves network speed, efficiency and capacity for more connected devices
• Gigabit Wired Connection – Provides high-speed wired connectivity for PCs, IPTV and gaming consoles
• Universal Compatibility – Works with any router to extend Wi-Fi coverage where you need it most
• One-Touch WPS Setup – Quickly expand your Wi-Fi network with a single button press

Technical Specifications:
FEATURES

• Dual-Band Speeds up to 1,500Mbps – 1,201Mbps on 5.0GHz and 300Mbps on 2.4GHz
• Wi-Fi 6 Technology – Improves network speed, efficiency and capacity for more connected devices
• Gigabit Wired Connection – Provides high-speed wired connectivity for PCs, IPTV and gaming consoles
• Universal Compatibility – Works with any router to extend Wi-Fi coverage where you need it most
• One-Touch WPS Setup – Quickly expand your Wi-Fi network with a single button press
• Access Point Mode – Supports both Range Extender and Access Point operating modes
• App-Based Management – Easily set up and manage your network from iOS or Android devices

SPECIFICATIONS

WIRELESS STANDARDS
• IEEE 802.11a/n/ac/ax 5.0GHz
• IEEE 802.11b/g/n 2.4GHz

FREQUENCY
• 2.4GHz
• 5.0GHz

SIGNAL RATE
• 300Mbps at 2.4GHz
• 1,201Mbps at 5.0GHz

RECEPTION SENSITIVITY
5.0GHz
• 11ax HE80 MCS0: -88dBm
• 11ax HE80 MCS11: -58dBm
• 11a 6Mbps: -94dBm
• 11a 54Mbps: -76dBm
• 11ac VHT80 MCS0: -91dBm
• 11ac VHT80 MCS9: -63dBm
2.4GHz
• 11g 6Mbps: -95dBm
• 11g 54Mbps: -77dBm
• 11n HT40: -72dBm

WIRELESS SECURITY
• WPA
• WPA2
• WPA3-PSK

HARDWARE

DIMENSIONS (W × D × H)
• 84.7 × 39 × 112mm (Without Plug)

INTERFACE
• 1× Gigabit Ethernet Port

BUTTON
• WPS Button
• Reset Button

ANTENNA
• 2× External Antennas

POWER CONSUMPTION
• 10W

CERTIFICATIONS
• RoHS

ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing
