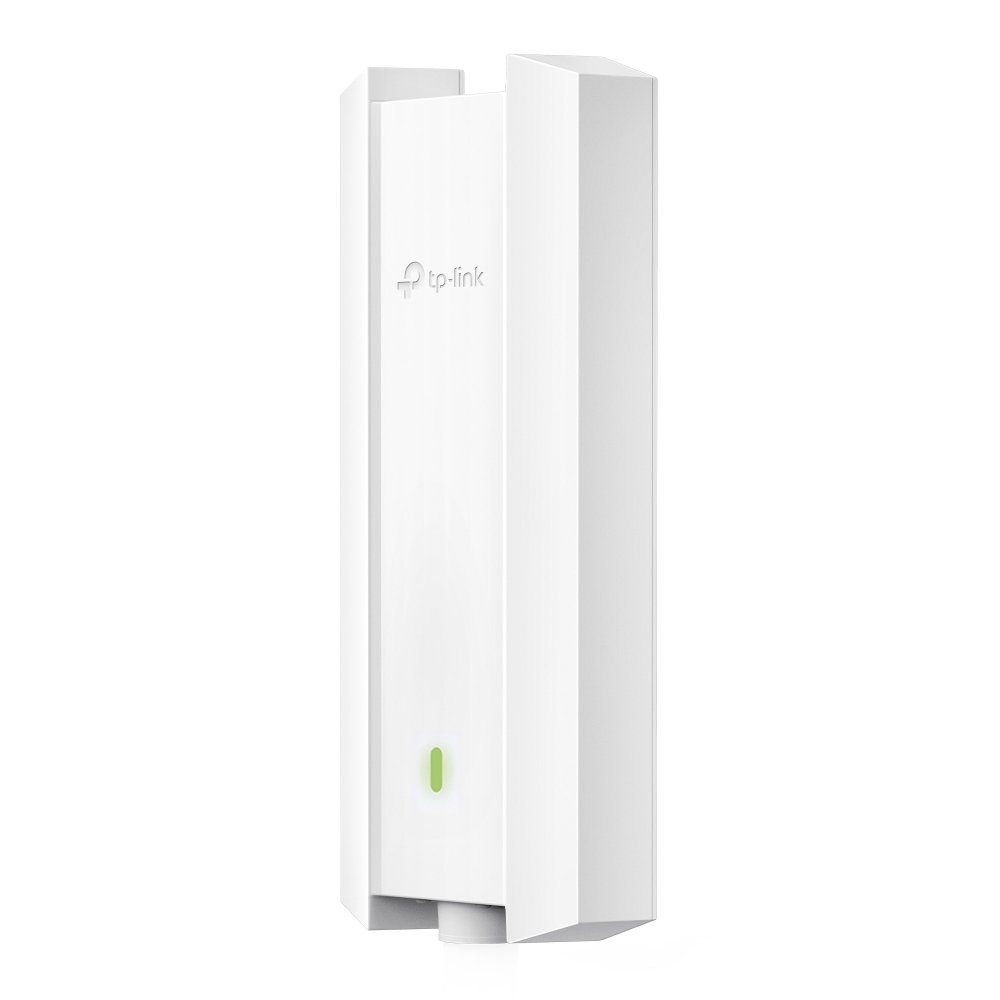

TP-Link OMADA AX1800 IN/OUT WIFI6 AP

Product Description

The TP-Link OMADA AX1800 IN/OUT WIFI6 AP is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Up to 1.8Gbps Wi-Fi 6 Speeds: 574Mbps on 2.4GHz + 1201Mbps on 5GHz.
• Supports Wi-Fi 6 technologies, such as 1024-QAM and OFDMA, etc.
• High-density connectivity up to 1,000+ clients.
• Long-range coverage with the high-power amplifier and smart antennas.
• IP67 weatherproof enclosure for various outdoor environments.

Technical Specifications:
FEATURES

• Up to 1.8Gbps Wi-Fi 6 Speeds: 574Mbps on 2.4GHz + 1201Mbps on 5GHz.
• Supports Wi-Fi 6 technologies, such as 1024-QAM and OFDMA, etc.
• High-density connectivity up to 1,000+ clients.
• Long-range coverage with the high-power amplifier and smart antennas.
• IP67 weatherproof enclosure for various outdoor environments.
• Advanced Functions: Centralised management, Omada mesh, and seamless roaming.
• PoE+ Powered: Supports 802.3at PoE (adapter not included).

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 1x Gigabit Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE, 48V Passive PoE
Note: PoE adapter is not included.
• Dimensions ( W x D x H ): 106.5 × 57 × 281mm
• Antenna: 2× Internal Dual-Band Omni Antennas
• 2.4GHz: 4.0 dBi
• 5GHz: 5.0 dBi
• Weatherproof Enclosure: IP67
• Mounting: Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
• Concurrent Clients: 1,020+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Frequency: 5GHz, and 2.4GHz
• Signal Rate: 5GHz Up to 1201Mbps, 2.4GHz: Up to 574Mbps
WIRELESS FUNCTIONS
• Mesh
• Seamless Roaming (802.11k/v/r)
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs: 16 (8 for each band)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
WIRELESS SECURITY
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• 802.1X Support
TRANSMISSION POWER
• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
MANAGEMENT FEATURES
• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
CENTRALISED MANAGEMENT
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

OTHERS
• Certification: CE, FCC, RoHS
ENVIRONMENT
• Operating Temperature: -30 °C–70 °C
• Storage Temperature: -40 °C–70 °C
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
