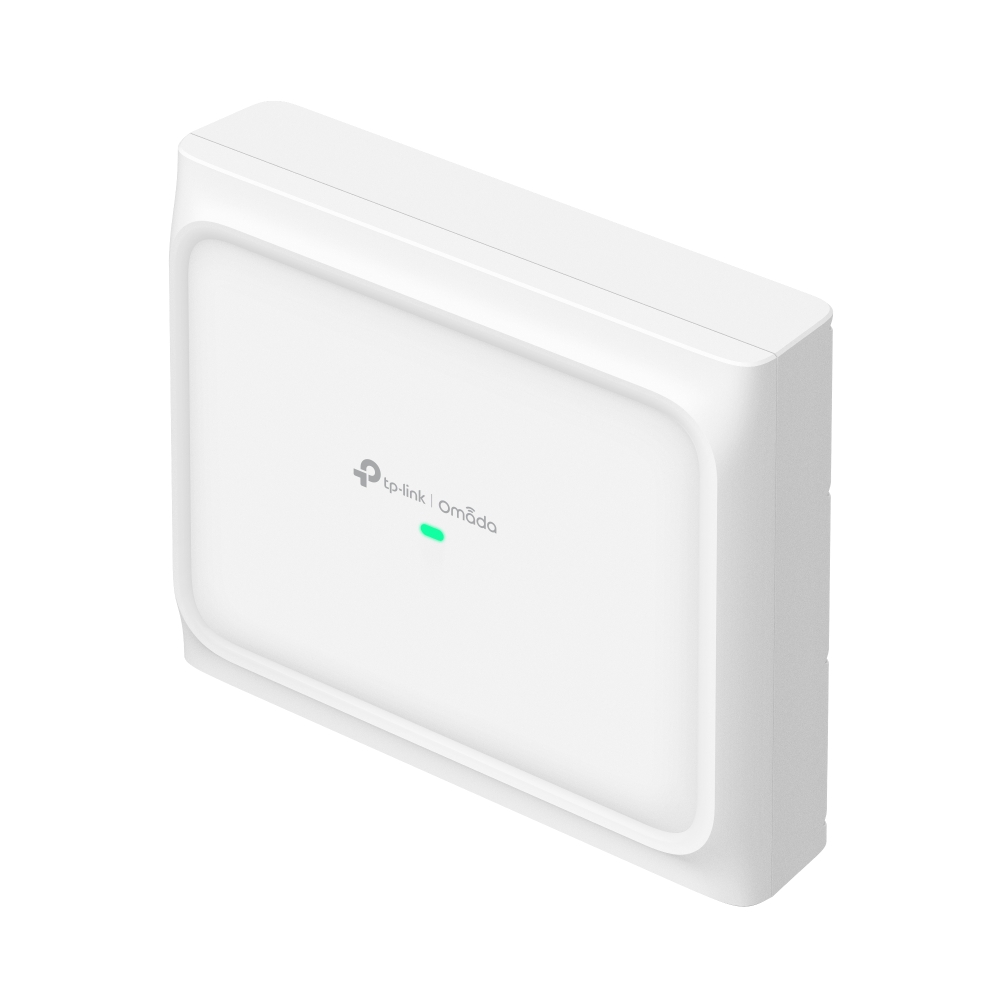

TP-Link OMADA AX3000 IN/OUT WIFI6 AP

Product Description

The TP-Link OMADA AX3000 IN/OUT WIFI6 AP is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Superior Wi-Fi 6 Speeds – 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
• Directional Ultra-Range Coverage – Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
• Ideal for Warehouses and Outdoor Scenes – Features an IP68 waterproof enclosure with -30°C to +70°C operating range
• 802.11k/v/r Seamless Roaming – Ensures uninterrupted connectivity for AGVs and handheld scanners
• Flexible Deployment – Supports 802.3at PoE and Omada Mesh technology

Technical Specifications:
FEATURES

• Superior Wi-Fi 6 Speeds – 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
• Directional Ultra-Range Coverage – Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
• Ideal for Warehouses and Outdoor Scenes – Features an IP68 waterproof enclosure with -30°C to +70°C operating range
• 802.11k/v/r Seamless Roaming – Ensures uninterrupted connectivity for AGVs and handheld scanners
• Flexible Deployment – Supports 802.3at PoE and Omada Mesh technology
• Centralised Cloud Management – Control everything from a single interface anywhere via the Omada App or Web UI

SPECIFICATIONS

HARDWARE

• Interface: 1× Gigabit Ethernet port supporting 802.3at PoE or 48V Passive PoE
• Power Consumption: 12.5W maximum
• Dimensions: 230×207.5×69.7mm
• Bluetooth: Yes
• Weatherproof Rating: IP68 outdoor enclosure
• Mounting Options: Optional APM-110 and APM-100 brackets with adjustable positioning

ANTENNA

• Built-In Directional Antennas
• 2.4GHz: 2×8dBi
• 5GHz: 2×10dBi
• Beamwidth: 120° horizontal 30° vertical

WIRELESS PERFORMANCE

• AX3000 Wi-Fi 6: 574Mbps on 2.4GHz and 2402Mbps on 5GHz
• Standards: IEEE 802.11a/b/g/n/ac/ax
• Coverage: Up to 200m+ on 2.4GHz and 500m+ on 5GHz
• Concurrent Clients: 250+ devices
• Modulation: 1024-QAM
• OFDMA: DL/UL support
• MU-MIMO: 2×2 on 2.4GHz and 5GHz

WIRELESS FEATURES

• Multiple SSIDs up to 16 per band
• Omada Mesh and Seamless Roaming (802.11k/v/r)
• Band Steering Load Balance and Airtime Fairness
• Beamforming and QoS (WMM)
• Automatic Channel Assignment and Transmit Power Control
• Reboot Schedule and Wireless Scheduling

SECURITY

• WPA Personal and Enterprise
• WPA2 Personal and Enterprise
• WPA3 Personal and Enterprise
• 802.1X Support
• Captive Portal Authentication
• Access Control and MAC Filtering
• Wireless Isolation and SSID to VLAN Mapping
• Rogue AP Detection

MANAGEMENT

• Omada App Support
• Centralised Management via Omada Hardware Software or Cloud-Based Controller
• Cloud Access Enabled
• SNMP v1 v2c v3
• SSH and Web-Based Management
• Multi-Site Management
• Zero-Touch Provisioning
• Email Alerts and Syslog Support

ENVIRONMENT

• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10 to 90% RH non-condensing
• Storage Humidity: 5 to 90% RH non-condensing

CERTIFICATIONS

• CE FCC RoHS
