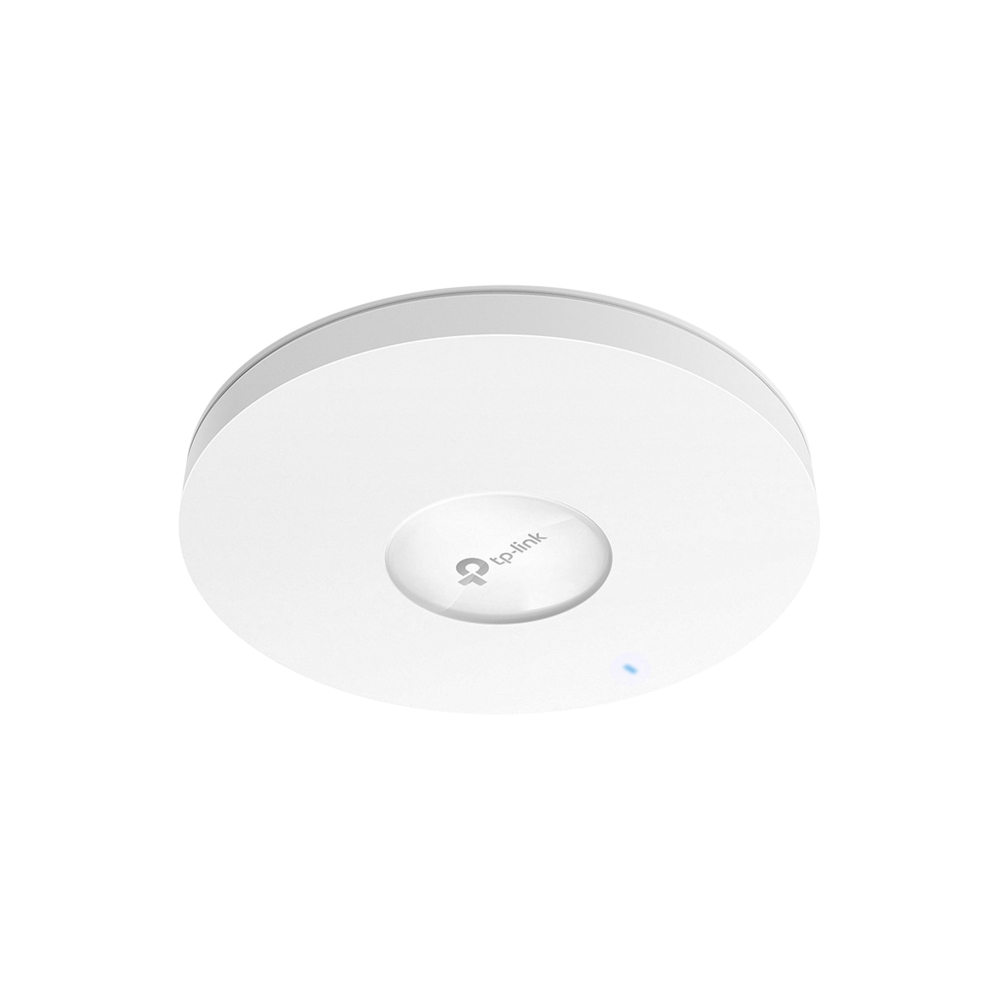

TP-Link OMADA AX3000 WIFI6 AP ULTRA

Product Description

The TP-Link OMADA AX3000 WIFI6 AP ULTRA is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Ultra-fast Wi-Fi 6 speeds: 2402Mbps on 5GHz t+ 574Mbps on 2.4GHz
• Ultra-range wireless coverage by more antennas with higher transmit power
• Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
• Advanced Features: Omada Mesh, Seamless Roaming, etc
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)

Technical Specifications:
FEATURES

• Ultra-fast Wi-Fi 6 speeds: 2402Mbps on 5GHz t+ 574Mbps on 2.4GHz
• Ultra-range wireless coverage by more antennas with higher transmit power
• Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
• Advanced Features: Omada Mesh, Seamless Roaming, etc
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
• Ultra-Slim Design: Φ6.3in × 1.3in elegant design brings more agility
• Integrates with the Omada SDN platform for centralized management

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 1× Gigabit PoE+ Port
• Button: Reset
• Power Supply:
– 802.3at PoE
– 12V DC / 1.5 A (Power Adapter IS NOT included)
– 48V Passive PoE
• Max. Power Consumption: 14.2W
• Dimensions ( W x D x H ): 160 × 160 × 33.6mm
• Antenna: Internal Omni
– 2.4GHz: 2× 5dBi
– 5GHz: 3× 5dBi
• Mounting:
– Ceiling /Wall Mounting (Kits included)
– Junction Box Mounting

WIRELESS FEATURES
• Coverage: 185m²
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate:
– 5GHz: Up to 2402Mbps
– 2.4GHz: Up to 574Mbps

WIRELESS FUNCTIONS
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
• HE160 (160 MHz Bandwidth)
• Seamless Roaming(802.11k/v/r)§
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER
• CE:
– <20 dBm(2.4 GHz, EIRP)
– <23 dBm(5 GHz, Band1 & Band2, EIRP)
– <29 dBm(5 GHz, Band3, EIRP)
• FCC:
– <26 dBm (2.4 GHz)
– <27 dBm (5 GHz)

MANAGEMENT FEATURES
• Omada App: Yes
• CentraliSed Management:
– Omada Hardware Controller (OC300)
– Omada Hardware Controller (OC200)
– Omada Software Controller
– Omada Cloud-Based Controller
• Cloud Access: Yes
Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes
Requiring the use of Omada Cloud-Based Controller

OTHERS
• Certification: CE, FCC, RoHS
• System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
• Environment:
– Operating Temperature: 0–40 °C (32–104 ℉)
– Storage Temperature: -40–70 °C (-40–158 ℉)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
Note: DC adapter is not included in the package, and is sold separately.
