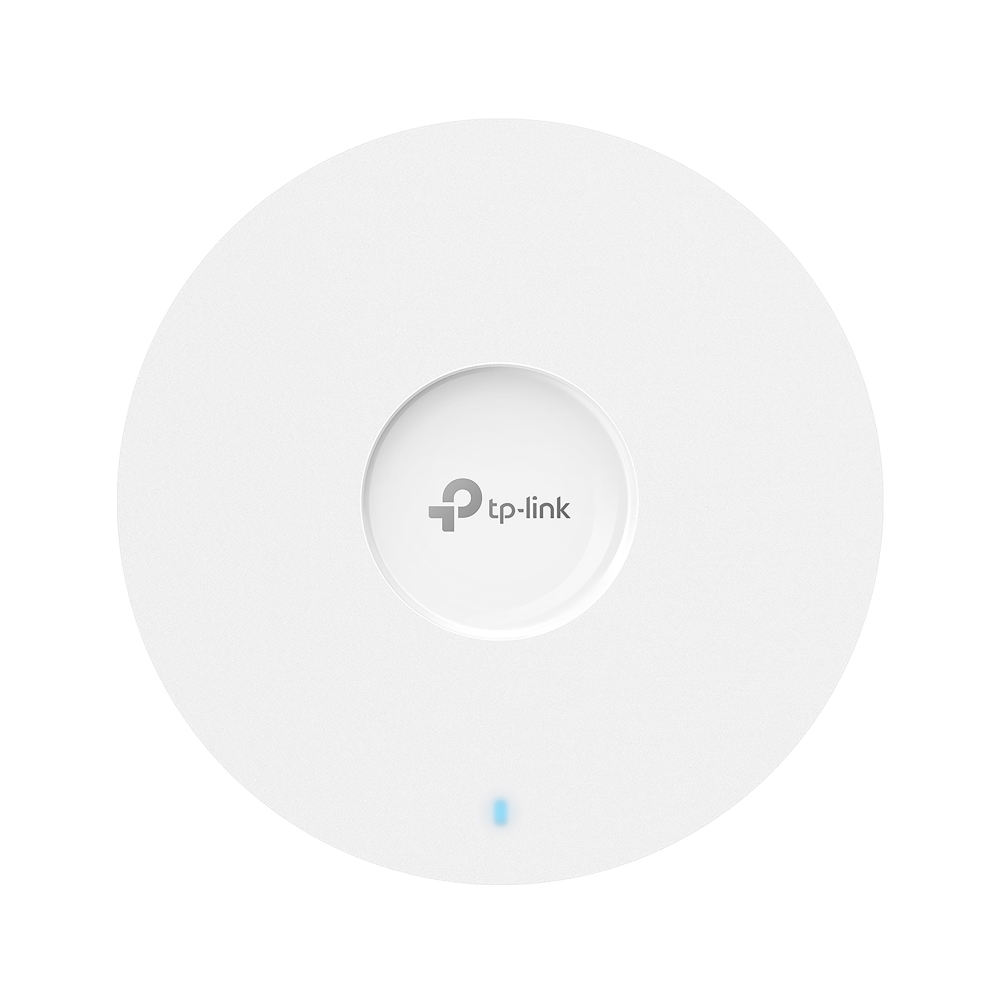

TP-Link OMADA AX6000 WIFI6 AP ULTRA

Product Description

The TP-Link OMADA AX6000 WIFI6 AP ULTRA is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Up to 5952Mbps Wi-Fi 6 Speeds: 1148Mbps on 2.4GHz + 4804Mbps on 5GHz
• Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power
• Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
• Integrates with the Omada SDN platform for centralized management
• Advanced Features: Omada Mesh, Seamless Roaming, and more

Technical Specifications:
FEATURES

• Up to 5952Mbps Wi-Fi 6 Speeds: 1148Mbps on 2.4GHz + 4804Mbps on 5GHz
• Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power
• Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
• Integrates with the Omada SDN platform for centralized management
• Advanced Features: Omada Mesh, Seamless Roaming, and more
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 1× 2.5 Gigabit PoE+ Port
• Button: Reset
• Power Supply:
– 802.3at PoE
– 12 V / 2 A DC
Note：Power adapter is not included
• Max. Power Consumption: 20.43W
• Dimensions ( W x D x H ): 220 × 220 × 32.5mm
• Antenna: Internal Omni:
– 2.4GHz: 4× 4dBi
– 5GHz: 4× 5dBi
• Bluetooth: Yes
• Mounting: Ceiling / Wall Mounting (Kits included)

WIRELESS FEATURES
• Coverage: 185m²
• Concurrent Clients: 510+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate:
– 5GHz: Up to 4804Mbps
– 2.4GHz: Up to 1148Mbps

WIRELESS FUNCTIONS
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• HE160 (160MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power:
– CE: <20 dBm(2.4 GHz, EIRP)
– <23 dBm(5 GHz, band1 & band2, EIRP)
– <28 dBm(5 GHz, band3, EIRP)
– FCC: <26 dBm (2.4 GHz)
– <26 dBm (5 GHz)

MANAGEMENT FEATURES
• Omada App: Yes
• CentraliSed Management:
– Omada Hardware Controller (OC300)
– Omada Hardware Controller (OC200)
– Omada Software Controller
– Omada Cloud-Based Controller
• Cloud Access: Yes
Require the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller

OTHERS
• Certification: CE,FCC,RoHS
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment:
– Operating Temperature: 0–40 °C
– Storage Temperature: -40–70 °C
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
