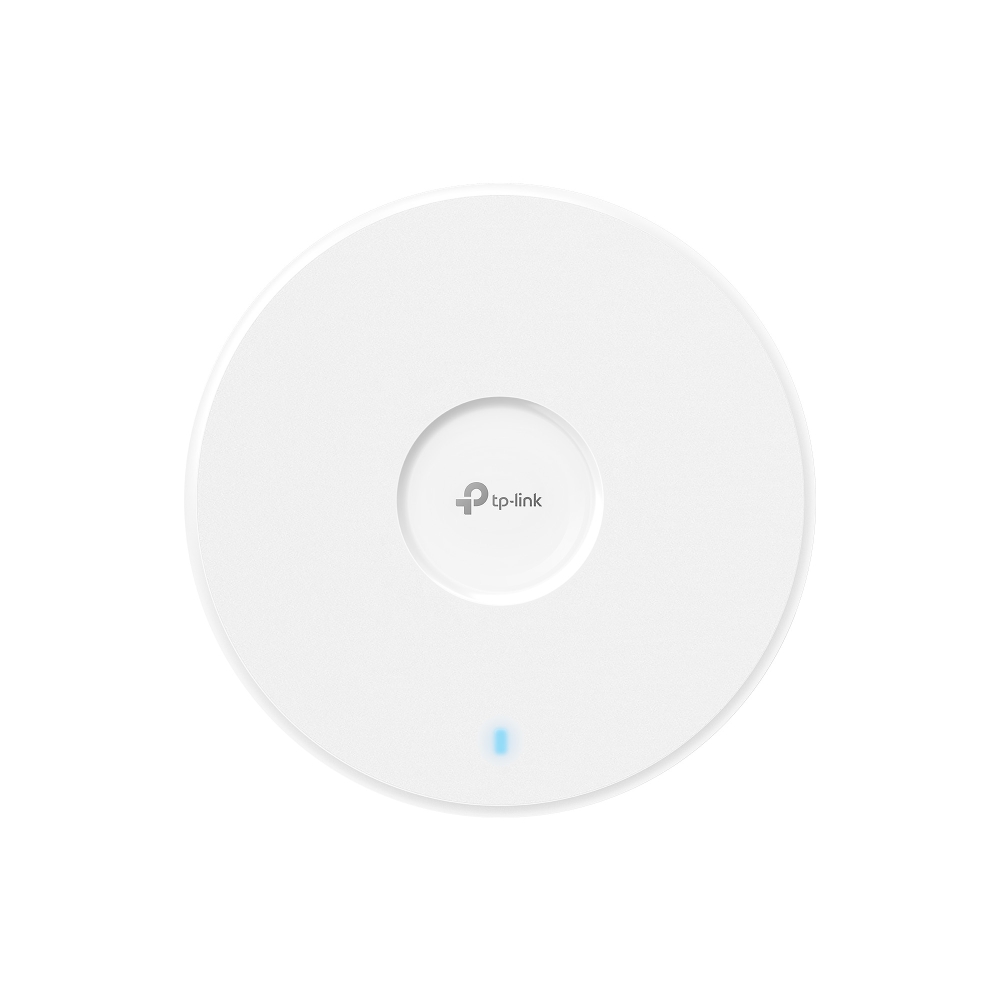

TP-Link OMADA BE3600 WIFI7 AP

Product Description

The TP-Link OMADA BE3600 WIFI7 AP is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• BE5000 Dual-Band Wi-Fi 7 (4,324Mbps on 5.0GHz plus 688Mbps on 2.4GHz)
• 1× 2.5GbE port unlocks the full potential of Wi-Fi 7
• 240MHz bandwidth enables many more simultaneous transmissions
• Multi-Link Operation and Multi-RUs ensure the high-performance of your network
• Advanced functions – centralised management, mesh and seamless roaming

Technical Specifications:
FEATURES

• BE5000 Dual-Band Wi-Fi 7 (4,324Mbps on 5.0GHz plus 688Mbps on 2.4GHz)
• 1× 2.5GbE port unlocks the full potential of Wi-Fi 7
• 240MHz bandwidth enables many more simultaneous transmissions
• Multi-Link Operation and Multi-RUs ensure the high-performance of your network
• Advanced functions – centralised management, mesh and seamless roaming

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 1× 2.5G Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE or 12V 1.5A DC (Power Adapter is Not Included)
• Max. Power Consumption:
– 17.8W (PoE)
– 14W (DC)
• Dimensions (W × D × H): 160 × 160 × 36.7mm
• Antenna:
– 2.4GHz: 2× 4dBi
– 5.0GHz: 2× 5dBi
• Mounting: Ceiling / Wall-Mounting / Junction Box (Kits Included)

WIRELESS FEATURES
• Coverage: 140m²
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate: 688Mbps (2.4GHz) + 4,324Mbps (5.0GHz)

WIRELESS FUNCTIONS
• MLO
• 4K-QAM
• Seamless Roaming
• MU-MIMO
• EHT240
• Mesh
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS: 16× (8× on each Band)
• Wireless Schedule
• Reboot Schedule
• QoS (WMM)
• Rate Limit
• Static IP / Dynamic IP
• RADIUS Accounting
• MAC Authentication

WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Maximum Number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power:
– <25dBm (2.4GHz)
– <25dBm (5.0GHz, Band 1 & Band 4)
– <24dBm (5.0GHz, Band 2 & Band 3)

MANAGEMENT FEATURES
• Omada App: Yes
• Centralised Management:
– Omada Cloud-Based Controller
– Omada Hardware Controller
– Omada Software Controller
• Cloud Access: Yes
Require the Use of an OC300, OC200, Omada Software Controller or an Omada Cloud-Based Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local / Remote Syslog: Yes
• Web-Based Management: Yes

OTHERS
• Certification: CE, FCC, RoHS, IC
• Environment:
– Operating Temperature: 0~40°C
– Storage Temperature: -40~70°C
– Operating Humidity: 10~90% Non-Condensing
– Storage Humidity: 5~90% Non-Condensing
