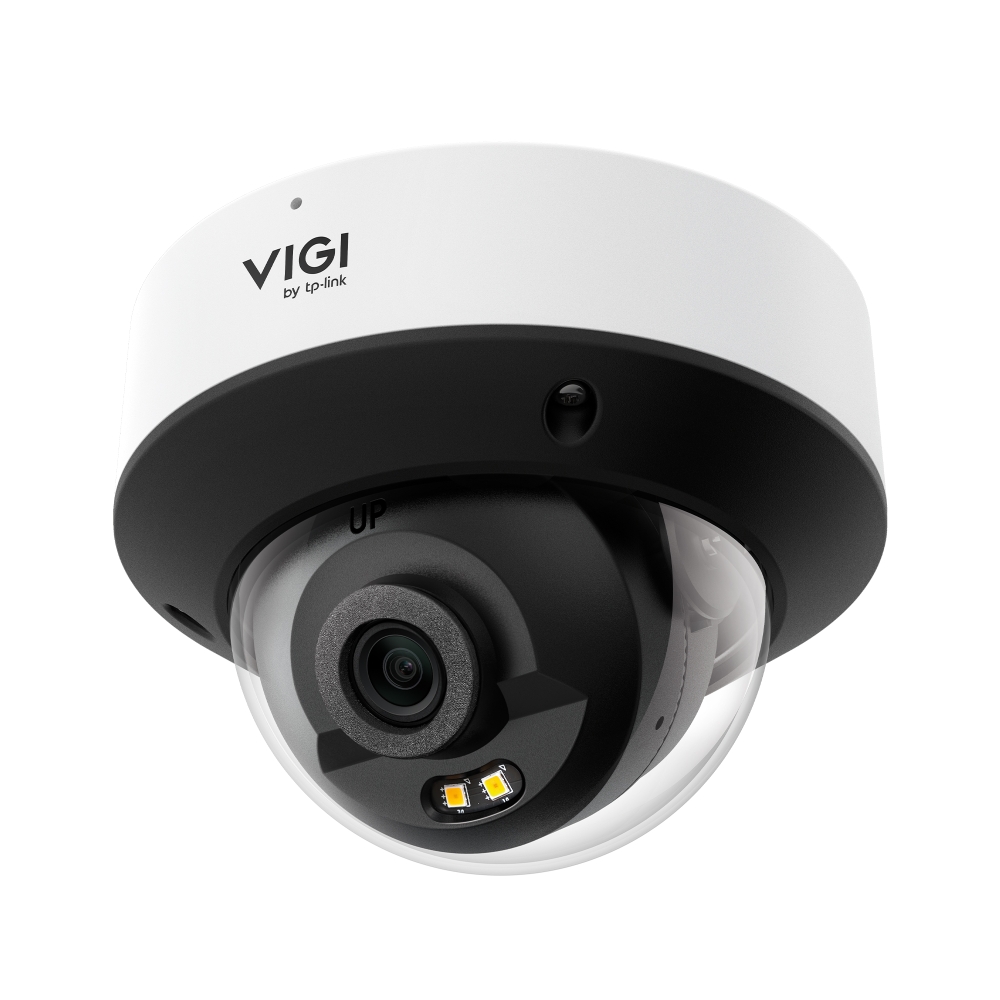

TP-Link VIGI 2MP COLOR DOME 2.8MM

Product Description

The TP-Link VIGI 2MP COLOR DOME 2.8MM is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 2MP Full HD Video – 1920 × 1080 resolution for clear surveillance footage
• 2.8mm Wide-Angle Lens – Up to 98.8° field of view for broader coverage
• IK10 Vandal-Proof Design – Reinforced metal housing for anti-tampering protection
• IP67 Weatherproof Housing – Reliable operation in harsh outdoor environments
• LightPro Full-Colour Night Vision – Smart IR and white light switching for enhanced visibility

Technical Specifications:
FEATURES

• 2MP Full HD Video – 1920 × 1080 resolution for clear surveillance footage
• 2.8mm Wide-Angle Lens – Up to 98.8° field of view for broader coverage
• IK10 Vandal-Proof Design – Reinforced metal housing for anti-tampering protection
• IP67 Weatherproof Housing – Reliable operation in harsh outdoor environments
• LightPro Full-Colour Night Vision – Smart IR and white light switching for enhanced visibility
• IR Night Vision – Up to 30m infrared range for low-light monitoring
• Smart AI Detection – Human and vehicle classification reduces false alarms
• Advanced Smart Events – Line crossing, intrusion, region enter/exit detection
• Built-in Microphone – Captures on-site audio for enhanced monitoring
• H.265+ Compression and Remote Management – Efficient storage with VIGI app, VMS and cloud support

SPECIFICATIONS

• Sensor: 1/3″ Progressive Scan CMOS
• Minimum Illumination: 0.005 Lux / 0 Lux with IR or White Light
• Lens Options: Fixed 2.8mm
• Aperture: F2.0
• Field of View: 98.8° (H) / 53.5° (V) / 117° (D)
• DORI (2.8mm): Detect 47m / Observe 19m / Recognise 9m / Identify 5m
• Max Resolution: 1920 × 1080
• Frame Rate: up to 30fps
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Bit Rate:
 - Main Stream: 256Kbps~4Mbps
 - Sub Stream: 64Kbps~512Kbps
• Streams: 1× Main + 1× Sub
• IR LEDs: 2×
• White LEDs: 2×
• Night Vision Distance: up to 30m
• Modes: Auto / Scheduled / Always On / Off
• WDR: DWDR
• SNR: ≥52dB
• Enhancements: BLC, 3D DNR, HLC, SmartIR
• Image Adjustments: Brightness, Contrast, Saturation, Sharpness, Exposure, White Balance
• Privacy Mask: up to 4× Zones
• ROI: 1× Region
• Human and Vehicle Classification
• Smart Detection:
 - Line Crossing
 - Intrusion
 - Region Enter / Exit
• Built-in Microphone: Yes (Audio Input Only)
• Audio Compression: G.711
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
• ONVIF: Profile S / T
• Live View: up to 3× Main + 3× Sub Streams
• Management: VIGI App, Web UI, VMS, Cloud
• Port: 1× RJ45 (10/100Mbps, PoE)
• Storage: NVR / Network Storage (No On-Board Storage)
• DC Input: 12V ±5%
• PoE: 802.3af/at
• Protection: IP67 / IK10
• Material: Metal
• Operating Temperature: -30~60°C
• Humidity: ≤95% (Non-Condensing)
• Dimensions: ø113.5 × 85.7mm
• Weight: 0.5kg
