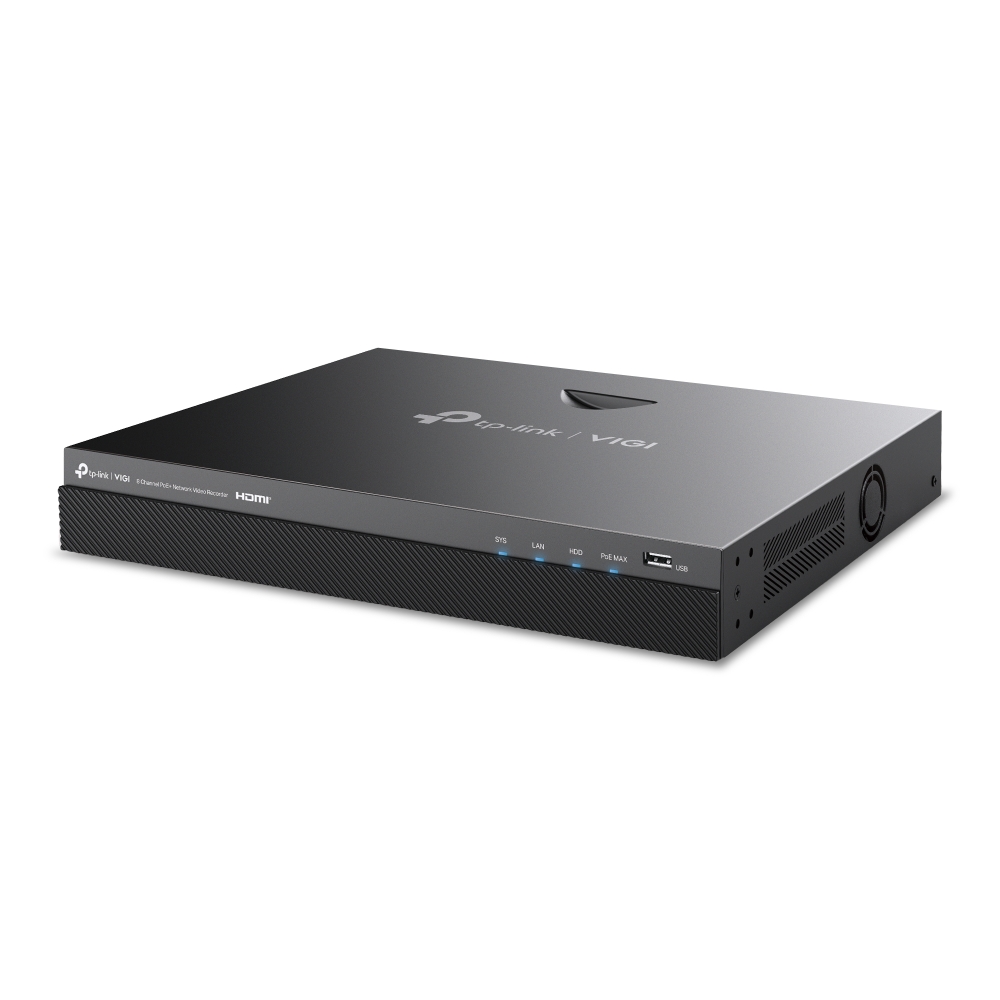

TP-Link VIGI 8P POE+ NVR 4K HDMI + VGA

Product Description

The TP-Link VIGI 8P POE+ NVR 4K HDMI + VGA is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8MP Video Recording – Supports ultra-high-definition surveillance for clear, detailed footage
• 8-Channel Input – Connect and manage up to 8× IP cameras simultaneously
• PoE+ Ports with 93W Budget – Power and connect cameras directly via Ethernet
• H.265+ Compression – Reduces bandwidth and storage requirements without compromising quality
• HDMI and VGA Output – Dual video outputs with up to 4K display support

Technical Specifications:
FEATURES

• 8MP Video Recording – Supports ultra-high-definition surveillance for clear, detailed footage
• 8-Channel Input – Connect and manage up to 8× IP cameras simultaneously
• PoE+ Ports with 93W Budget – Power and connect cameras directly via Ethernet
• H.265+ Compression – Reduces bandwidth and storage requirements without compromising quality
• HDMI and VGA Output – Dual video outputs with up to 4K display support
• Remote Monitoring – Access live view and playback via VIGI app, web UI or VMS
• Smart Playback – Quickly locate events with intelligent timeline navigation
• ONVIF Compatibility – Works with a wide range of IP cameras
• SATA Storage Support – Supports large-capacity HDD for extended recording

SPECIFICATIONS

• Video Input: 8× IP Channels
• Incoming Bandwidth: 80Mbps
• Outgoing Bandwidth: 60Mbps
• HDMI Output: up to 4K (3840 × 2160)
• VGA Output: up to 1080p (1920 × 1080)
• Video Output Mode: HDMI / VGA Simultaneous
• Multi-View Display: 1 / 4 / 6 / 8
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Audio Compression: G.711 A / G.711 U / G.726
• Recording Resolution: up to 8MP
• Playback: 8-Channel Synchronous
• Decoding Capability:
 - 2× 8MP / 4× 4MP / 8× 2MP (25fps)
 - 4× 5MP / 4× 3MP (30fps)
• Recording Modes: Manual / Schedule / Motion Detection
• Playback Modes: Instant / Regular / Tag / Event
• Backup: Regular / Video Clip
• Playback Functions:
 - Play / Pause / Stop
 - Fast Forward / Backward
 - Frame-by-Frame
 - Digital Zoom
 - Clip / Export
 - Lock Recording
• Network Protocols: TCP/IP, DHCP, NTP, UPnP
• Remote Access: Android / iOS
• Web Browser Support: Chrome / Firefox / Edge
• ONVIF: Yes
• Network Interface: 1× RJ45 (10/100Mbps)
• USB: 2× USB2.0 (Front + Rear)
• Audio: 1× In, 1× Out
• HDMI: 1×
• VGA: 1×
• eSATA: 1×
• HDD Interface: 2× SATA
• Capacity: up to 16TB per HDD
• PoE Standard: 802.3af/at
• PoE Ports: 8× RJ45
• PoE Budget: 93W (Max. 30W per Port)
• Smart Events:
 - Motion Detection
 - Line Crossing / Intrusion
 - Region Enter / Exit
 - Object Abandon / Removal
 - Vehicle / Human Detection
• Alarm Events:
 - Video Loss / Offline
 - IP Conflict
 - Disk Exception
 - Login Exception
• Alarm Actions: Recording / Notification / Buzzer / Log
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Dimensions: 330 × 285 × 45mm
• Net Weight: 2.1kg
• Power Supply: 53.5VDC 2.43A
• Max Power Consumption:
 - 4.9W (Without HDD)
 - 35W (With HDD)
• Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
