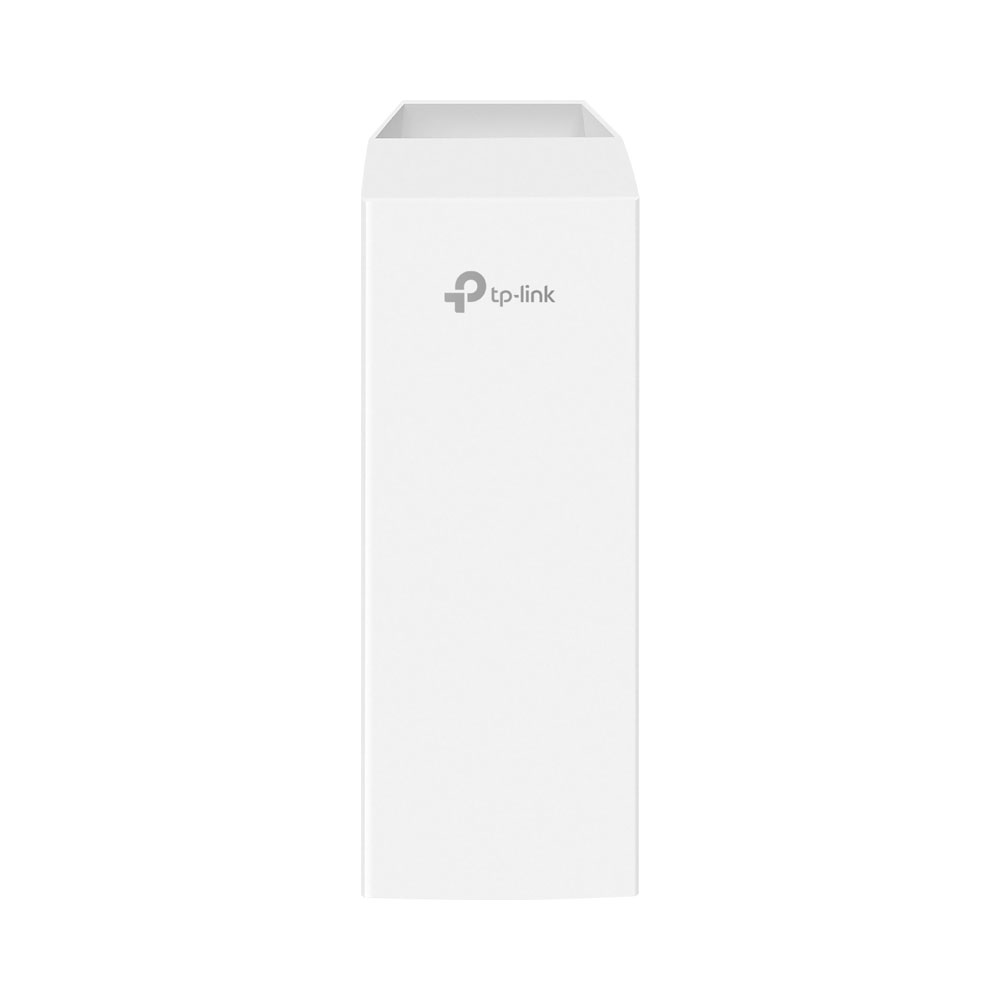

TP-Link WIRELESS BRIDGE 5GHZ INDOOR/OUTDOOR

Product Description

The TP-Link WIRELESS BRIDGE 5GHZ INDOOR/OUTDOOR is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 867Mbps 802.11ac Performance – Delivers up to 867Mbps on the 5.0GHz band for high-speed wireless bridging
• Extended 5km Long-Range Transmission – Engineered for reliable long-distance outdoor connectivity
• Auto-Pairing With Agile LEDs – Simplifies deployment with quick pairing and visual alignment indicators
• 3× Gigabit Ethernet Ports – Connect multiple high-speed IP cameras or network devices
• Omada SDN Supported – Enables remote and centralised cloud-based management

Technical Specifications:
FEATURES

• 867Mbps 802.11ac Performance – Delivers up to 867Mbps on the 5.0GHz band for high-speed wireless bridging
• Extended 5km Long-Range Transmission – Engineered for reliable long-distance outdoor connectivity
• Auto-Pairing With Agile LEDs – Simplifies deployment with quick pairing and visual alignment indicators
• 3× Gigabit Ethernet Ports – Connect multiple high-speed IP cameras or network devices
• Omada SDN Supported – Enables remote and centralised cloud-based management
• IP65 Weatherproof With 6kV Lightning Protection – Built for stable all-weather outdoor operation

SPECIFICATIONS

HARDWARE FEATURES

INTERFACE
• 3× Gigabit Ethernet Ports

BUTTON
• Reset

POWER SUPPLY
• 12V DC
• 24V Passive PoE (Adapter Included)

POWER CONSUMPTION
• 11.5W

DIMENSIONS (W × D × H)
• 79 × 60 × 224mm

ANTENNA
• Internal 2× Dual-Polarised Directional MIMO Antennas
• 5.0GHz: 11dBi
• Beamwidth: 35° Horizontal, 35° Vertical

WEATHERPROOF ENCLOSURE
• IP65

MOUNTING
• Pole Mounting (Accessories Included)

WIRELESS FEATURES

COVERAGE
• up to 5000m

WIRELESS STANDARDS
• IEEE 802.11a/b/g/n/ac

FREQUENCY
• 5.0GHz

SIGNAL RATE
• Up to 867Mbps

WIRELESS FUNCTIONS
• Mesh
• 5G 2×2 MU-MIMO (DL)
• Load Balance
• Beamforming
• Seamless Roaming (802.11r)
• Airtime Fairness
• Multiple SSIDs: 8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP / Dynamic IP

WIRELESS SECURITY
• VLAN Support
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum MAC Filters: 4,000
• WPA-Personal / Enterprise
• WPA2-Personal / Enterprise

TRANSMISSION POWER
CE
• <23dBm (5.0GHz Band 1/2, EIRP)
• <30dBm (5.0GHz Band 3, EIRP)
FCC
• <22dBm (5.0GHz Band 1/4)

MANAGEMENT
• Omada App
• Restore and Backup
• Firmware Update via Web
• NTP

CENTRALISED MANAGEMENT
• Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

CLOUD ACCESS
• Yes (Requires OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller)

• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c/v3
• SSH
• Web-Based Management

CERTIFICATION
• CE
• FCC
• RoHS

ENVIRONMENT
• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
