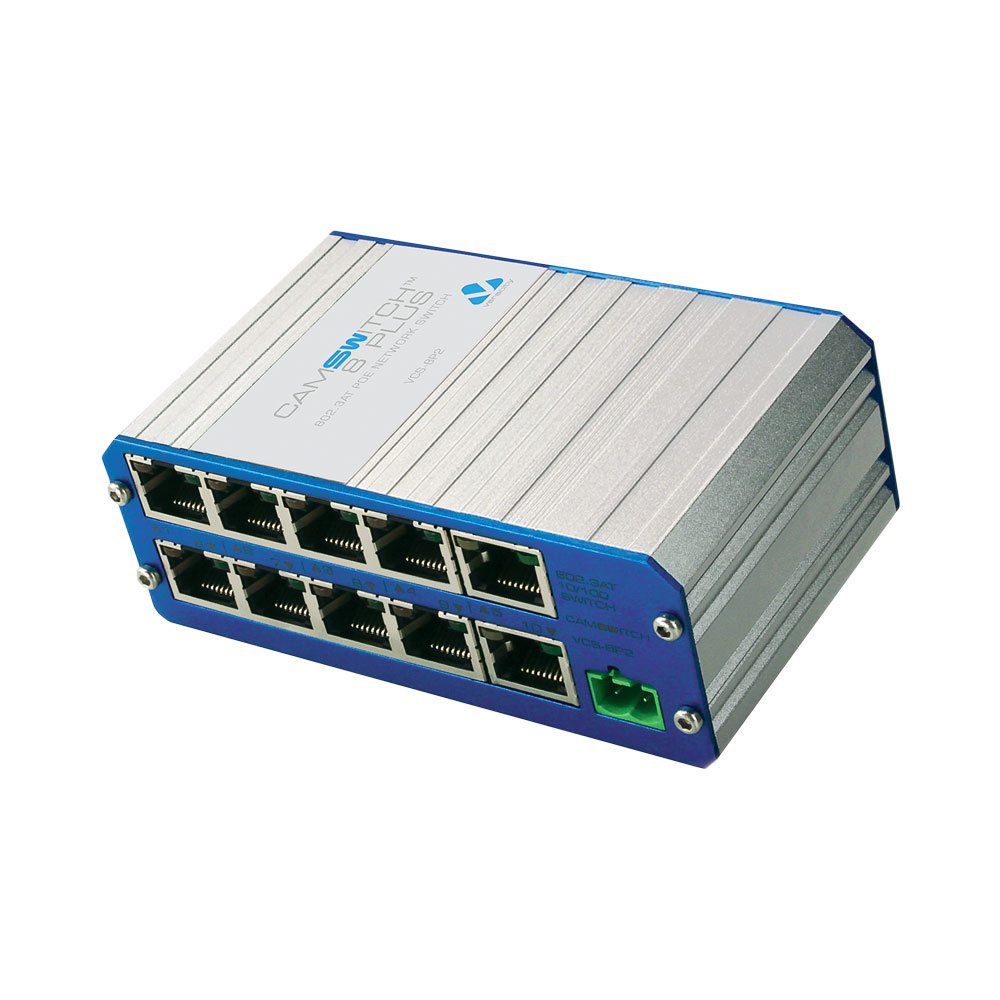

Veracity CAMSWITCH 8 PLUS

Product Description

The Veracity CAMSWITCH 8 PLUS is a high-performance solution from Veracity, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Camswitch Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation
• An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget
• Camswitch 8 Plus features 8 802.3 at POE ports, as well as 2 further network ports, and is compatible with Veracity’s rack-mounting system
• SPECIFICATIONS
• Total Camera Power Budget

Technical Specifications:
FEATURES
• Camswitch Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation
• An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget
• Camswitch 8 Plus features 8 802.3 at POE ports, as well as 2 further network ports, and is compatible with Veracity’s rack-mounting system

SPECIFICATIONS

• Total Camera Power Budget
40 watts – VPSU-57V-800 power supply
78 watts – VPSU-57V-1500 power supply
25 watts – VOR-OSP POE injector
10 watts – 802.3af POE switch
Network
• 5/10 port unmanaged 10/100 switch
• Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex
• Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
• VCS-8P2 supports VLAN trunking
Power
• Device power: 3W
• POE outputs: IEEE802.3af / IEEE802.3at compliant
• POE input: IEEE802.3af compliant / custom high power
Dimensions
• W: 110m / 131mm with side clips
• D: 64mm / 76-80mm including connectors
• H: 22mm (VCS-4P1) / 40mm (VCS-8P2)
• Weight: 135g (VCS-4P1) / 225g (VCS-8P2)
