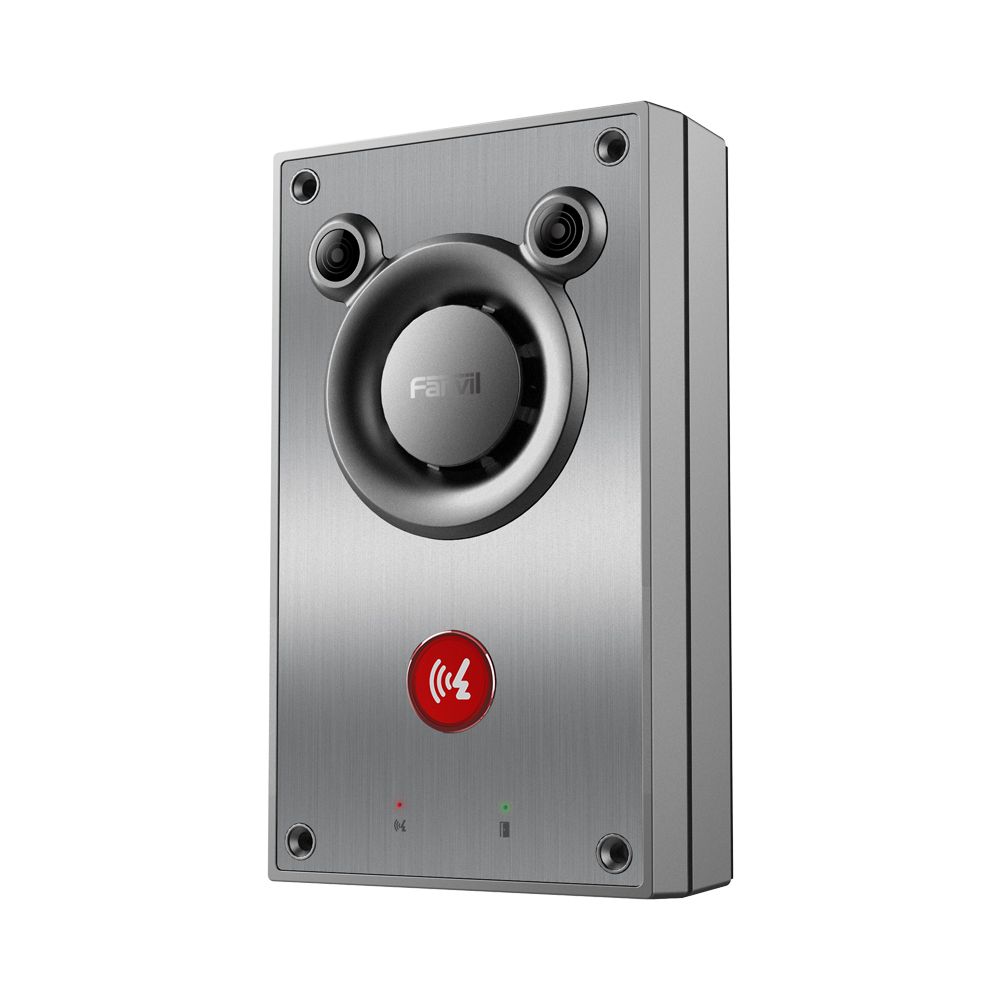

Fanvil A12 OUTDOOR AUDIO INTERCOM WITH 10W SPEAKER

Product Description

The Fanvil A12 OUTDOOR AUDIO INTERCOM WITH 10W SPEAKER is a high-performance solution from Fanvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Excellent Sound Quality – With a unique turbine cavity design, bringing extraordinary audio
• Intelligent Audio – Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
• Loud Sound – 10W Speaker, 90dB hands-free call and 100dB broadcast – sound shock
• Remote Pickup – Remote pickup can reach up to 5m and accurately capture every word
• Self-Check Function – Voice loop self-check, simplifies maintenance and reduces cost

Technical Specifications:
FEATURES

• Excellent Sound Quality – With a unique turbine cavity design, bringing extraordinary audio
• Intelligent Audio – Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
• Loud Sound – 10W Speaker, 90dB hands-free call and 100dB broadcast – sound shock
• Remote Pickup – Remote pickup can reach up to 5m and accurately capture every word
• Self-Check Function – Voice loop self-check, simplifies maintenance and reduces cost
• Recording Broadcast – Built-in SD card slot supports recording and preset broadcast – flexible and diverse
• Stylish and Durable – Stainless steel panel with an aluminium-alloy structure, corrosion resistance and up to IK10 anti-theft standard
• Protection Grade – IP66 Waterproof and dustproof grade, suitable for all kinds of harsh environment
• Friendly Interaction – Large 27mm backlit button, dual status indicator (call, control), intuitive and friendly operation
• High Compatibility – Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc
• Alarm Light – Built-in 1× wet node output, can drive the external alarm light
• Rich Interfaces – Audio line output, short circuit input / output, Wiegand, USB, RS485, to meet diverse needs

SPECIFICATIONS

SYSTEM

• OS: Linux
• Appearance: Front Shell – Stainless Steel, Bottom Shell – Aluminium-Alloy
• DSS Key: 1×
• Dimensions: 205 × 120 × 47mm
• SIP Lines: 2×
• Tamper-Proof: Yes
• Third-Party IP Camera Integration: Supported
• Auto-Provisioning: DHCP / TR069 / SIP PnP
• ONVIF: Supported
• Call LED: Yes
• Door LED: Yes

AUDIO AND VIDEO

• HD Audio: Yes
• Wideband Codec: G.722, Opus
• Broadcast Codec: G.722, Opus, MP3
• Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
• Microphone: 2×
• Microphone Pickup Distance: up to 5m
• Power Amplifier: 10W Class D
• Speaker Power: 10W
• Full Duplex (1m): 90dB
• Half Duplex (1m): 100dB
• Broadcast (1m): 100dB
• Acoustic Echo Cancellation: Yes
• Noise Reduction: Yes

INTERFACES

• PoE: PoE+
• DC Power: Supported
• TF Card Slot: SD Card (Max. 256GB)
• Audio Interface: 1× Audio Output (1KΩ)
• Relay: 2× (Max. DC 30V 2A, AC 125V 0.5A)
• Short-Circuit Output: 2× (1× Wet-Node)
• Short-Circuit Input: 2×
• RS485 Interface: 1×
• Ethernet Port: 1× RJ45
• USB Interface: 1×
• Installation: Flush-Mounted / Wall-Mounted

PROTECTION AND ENVIRONMENT

• Protection Rating: IP66, IK10
• Operating Temperature: -40~70°C
