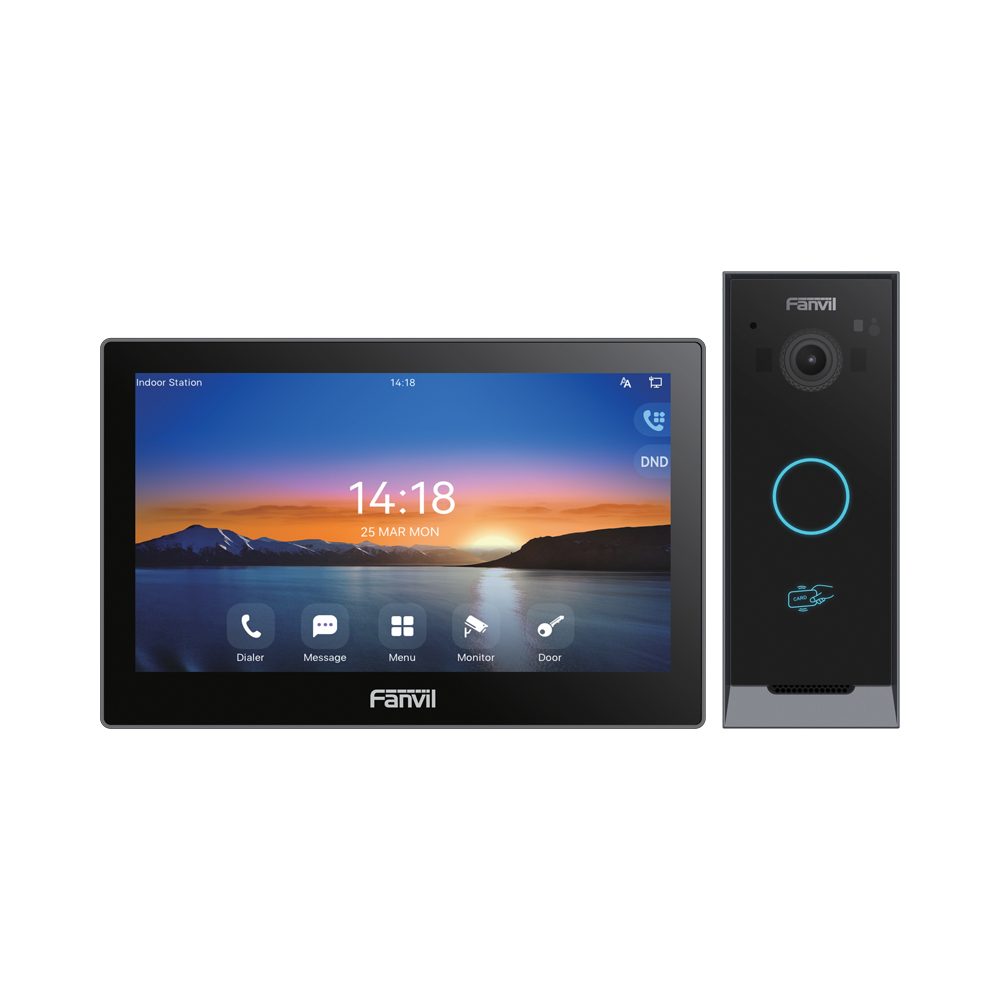

Fanvil VIK-01 VIDEO INTERCOM KIT I60 AND I504W

Product Description

The Fanvil VIK-01 VIDEO INTERCOM KIT I60 AND I504W is a high-performance solution from Fanvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Plug and play, quickly deployment
• Flexible door access methods
• Monitor door phone camera footage on both mobile and indoor station
• Remote door opening anytime, anywhere
• Supports one-touch calling

Technical Specifications:
FEATURES

• Plug and play, quickly deployment
• Flexible door access methods
• Monitor door phone camera footage on both mobile and indoor station
• Remote door opening anytime, anywhere
• Supports one-touch calling
• CCTV integration

FANVIL I504W SPECIFICATIONS

• Screen: 7″ 1024×600 Colour Capacitive Touch Screen
• Body: ABS
• Speaker: 2W
• Wi-Fi: 2.4GHz/5.0GHz
• Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
• Network: 10/100Mbps Adaptive
• Power Supply:
DC12V 1A
PoE: 3.65~6.64W
• Working Temperature: -10~50°C
• Storage Temperature: -40~80°C
• Working Humidity: 10~90%
• Size (L × W × H): 177.38 × 113.99 × 22.5mm
• Installation: Wall-Mounted

FUNCTIONAL CAPABILITIES
• Supported Protocols: SIP 2.0 over UDP/TCP/TLS
• Audio:
Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC
Broadband Codec: G.722, OPUS
Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)
• Video:
Hardware Decoding: H.264, H.265 (Optional)
Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p
• DTMF:
In-Band
Out-of-Band DTMF (RFC2833)
SIP Info
• Do Not Disturb (DND): Supported and the Time Can Be User-Defined
• Supports:
Viewing Video from Third-Party IP Cameras
Customising Incoming Call Ringtones
Remote Door Unlocking
Sending/Receiving Messages

FANVIL I60 SPECIFICATIONS

• Keyboard: 1× Speed-Dial Button
• Body: ABS and PC
• Colours:
Panel: Black
Housing: Gunmetal
• Sensor: 1/2.9″, CMOS
• Camera: 2MP, Supports Infrared
• Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Output Video: H.264 (Baseline, Main Profile)
• Light Sensitivity: 0.1 Lux
• Card Storage: 1,0000
• Power Consumption:
PoE: 1.63~6.93W
Adapter: 1.51~6.16W
• Power Supply:
DC12V 1A
PoE 802.3af Class 3
• Working Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Dimensions: 50 × 130 × 30mm
• IP Level: IP65
• Installation:
Wall-Mounted
Rain Cover

FUNCTIONAL CAPABILITIES

• Supported: SIP 2.0 over UDP/TCP/TLS
• Lock Opening:
IC Card
By DTMF Code
Remote Door Opening
BLE
• Interface:
Wiegand Input / Output
Short-Circuit Input / Output
• Supported Wiegand: 26, 34bit
• Supported ONVIF: Profile S
• Supported Standards:
IC Card
DTMF
Indoor Switch
BLE Cards 13.56 MHz
• Talking Mode: Full-Duplex (High-Definition Audio)
• Supports:
Built-In Relay
Motion Detection
Tamper Alarm
TF Card
Open API
