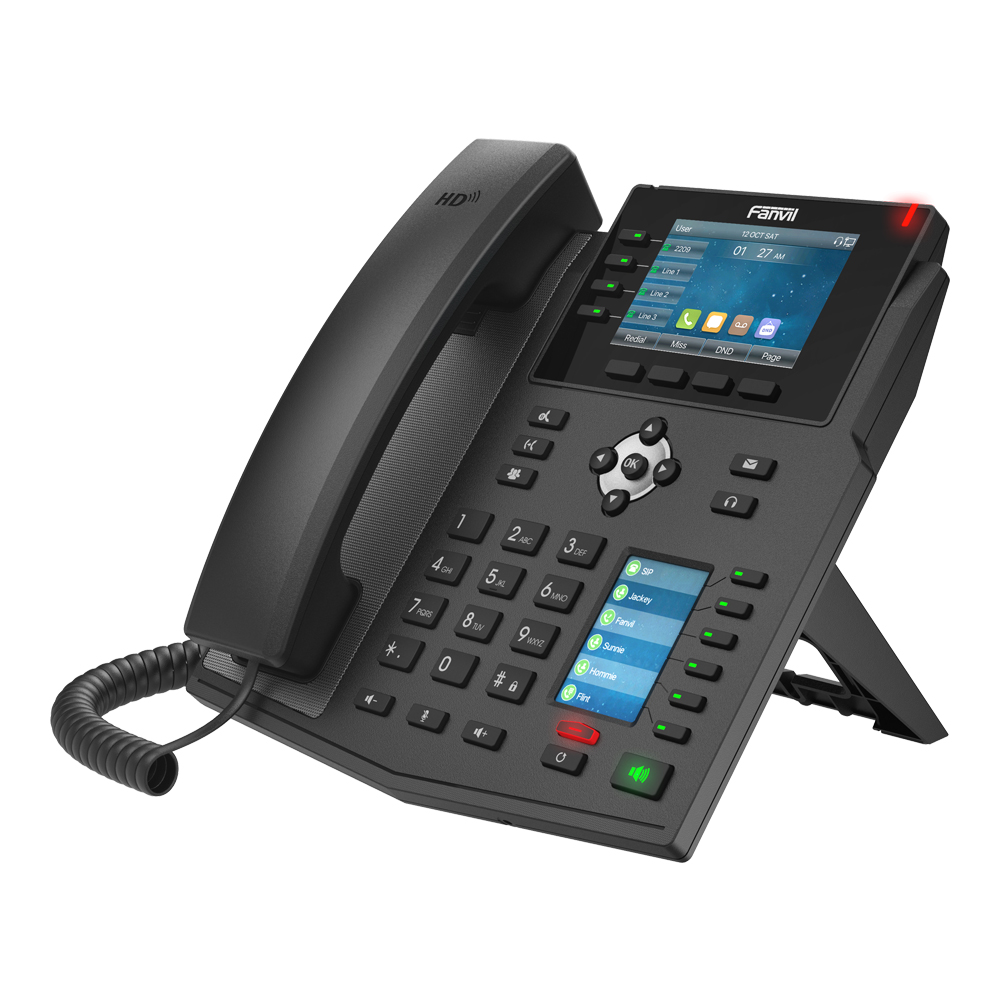

Fanvil X5U ENTERPRISE IP PHONE WITH 3.5″ MAIN COLOUR SCREEN AND 2.4″ EXTENDED COLOUR SCREEN

Product Description

The Fanvil X5U ENTERPRISE IP PHONE WITH 3.5″ MAIN COLOUR SCREEN AND 2.4″ EXTENDED COLOUR SCREEN is a high-performance solution from Fanvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Dual-Screen Design – 3.5-inch main colour display with 2.4-inch DSS screen for enhanced control
• 16× SIP Lines – Supports high call capacity for enterprise environments
• HD Voice Quality – Crystal-clear audio on handset and speakerphone
• 6-Way Audio Conference – Efficient multi-party communication
• Dual Gigabit Ports with PoE – High-speed connectivity and simplified deployment

Technical Specifications:
FEATURES

• Dual-Screen Design – 3.5-inch main colour display with 2.4-inch DSS screen for enhanced control
• 16× SIP Lines – Supports high call capacity for enterprise environments
• HD Voice Quality – Crystal-clear audio on handset and speakerphone
• 6-Way Audio Conference – Efficient multi-party communication
• Dual Gigabit Ports with PoE – High-speed connectivity and simplified deployment
• Built-in Bluetooth 4.2 – Supports Bluetooth headsets and Wi-Fi dongle connectivity
• EHS Headset Support – Compatible with wireless headsets for hands-free operation

SPECIFICATIONS

PHONE FUNCTIONS

• Phonebook: Local (2,000 Entries), Remote XML/LDAP (2,000 Entries)
• Call Logs: 1,000 Entries (Incoming/Outgoing/Missed)
• DSS-Keys: Programmable with Multi-Page Support (up to 30× DSS-Keys)
• Bluetooth 4.2: Supports Headsets and Mobile Device Pairing
• Wi-Fi Support: via Optional USB Dongle
• USB Port: Supports Call Recording and Storage

CALL FUNCTIONS

• Call Handling: Call Out, Answer, Reject, Hold, Resume
• Call Forwarding: Always, Busy, No Answer
• Call Transfer: Attended and Unattended
• Conferencing: 6-Way Audio Conference
• DND: Do-Not-Disturb with Scheduling
• Speed Dial & Redial: Quick Call Access Features

AUDIO

• HD Voice: Handset and Speakerphone
• Wideband Codecs: G.722, Opus
• Narrowband Codecs: G.711a/u, G.729, G.726, iLBC
• Echo Cancellation: Full-Duplex AEC
• Noise Processing: VAD, CNG, NR, AGC
• Jitter Buffer: Dynamic Adaptive

NETWORK

• Interfaces: Dual 10/100/1000Mbps RJ45 Ports (Bridged PC Port)
• IP Mode: IPv4 / IPv6 / Dual Stack
• VLAN & QoS: 802.1p/Q, Traffic Prioritisation
• VPN: L2TP, OpenVPN
• Network Access Control: IEEE 802.1x

PROTOCOLS

• SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Transport: UDP, TCP, TLS
• Media: RTP, RTCP, SRTP
• Provisioning: DHCP, FTP, TFTP, HTTP, HTTPS
• Time Sync: SNTP

DEPLOYMENT & MANAGEMENT

• Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIP PnP
• Management: Web Interface, Syslog, Packet Capture
• Configuration: Import/Export, Firmware Upgrade
• Security: HTTPS, AES128/256 Encryption
• Remote Management: TR-069 Support

PHYSICAL

• Display: 3.5″ Main Screen (480 × 320), 2.4″ DSS Screen (240 × 320)
• Keypad: 42-Keys Including DSS, Line and Function Keys
• Ports: 2× RJ45, 2× RJ9, 1× USB2.0, 1× DC Power
• Power: DC 5V 2A or PoE (IEEE 802.3af)
• Installation: Desktop Stand (45° / 50°) or Wall-Mount (Optional Extra)
• Operating Temperature: 0~45°C
