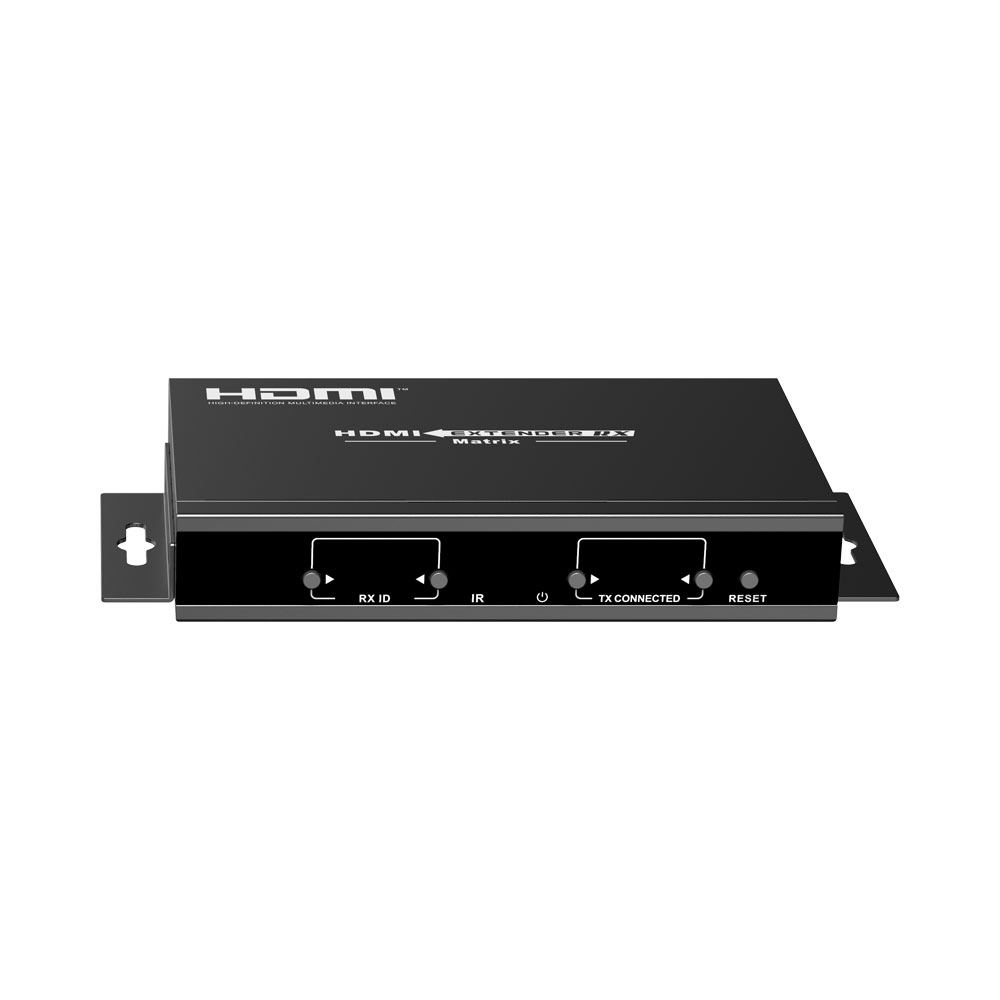

Lenkeng 120M HDBIT HD EXTENDER MATRIX RECEIVER (1)

Product Description

The Lenkeng 120M HDBIT HD EXTENDER MATRIX RECEIVER (1) is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Applies Advanced Over IP Technology
• Resolution Supported is up to 1080p @60Hz Full HD
• Transmission Distance up to 120m via CAT6
• Supports IR Pass Back Function to Control Source Device from RX Location
• Offers Scalable and Flexible Input-Output Matrix Configuration, Allows 100× Input to Infinite Output

Technical Specifications:
FEATURES

• Applies Advanced Over IP Technology
• Resolution Supported is up to 1080p @60Hz Full HD
• Transmission Distance up to 120m via CAT6
• Supports IR Pass Back Function to Control Source Device from RX Location
• Offers Scalable and Flexible Input-Output Matrix Configuration, Allows 100× Input to Infinite Output
• Supports Computer Control Software to Select and Switch Source Device Input
• Plug-and-Play
• Support to Select and Switch Source Device Input from Receiver via Remote Control and Hard Button
• Surge, Lightning and ESD Protection

SPECIFICATIONS

• Item HDMI signal: HDMI 1.3, HDCP Compliant
• Network Bandwidth: 18Mbps
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz
• Audio Format: PCM
• TMDS Signal: 0.7~l.2Vp-p
• DDC Signal: SVp-p
• Remote Control: Support
• IR Pass Back: Supports 20~60KHz IR Devices
• App Control: Supports App Control. User Can Scan, Preview, Build-Up Their Configuration by using a Phone/Tablet Easily. OS System Supports iOS and Android.
• Matrix Configuration: up to 100 Source Signals Can Be Connected and Switched to Infinite Output
• Power Supply: 5V 2A
• Power Consumption: TX <4W, RX <4W
• Weight: TX 260g, RX 250g
• Dimensions (L × W × H): 133.8 × 83.8 × 23.8mm
• Working Temperature: 0~60°C
• Storage Temperature: -20~70°C
• Relative Humidity: 0~95 % {No Condensation)
• Colour: Black
