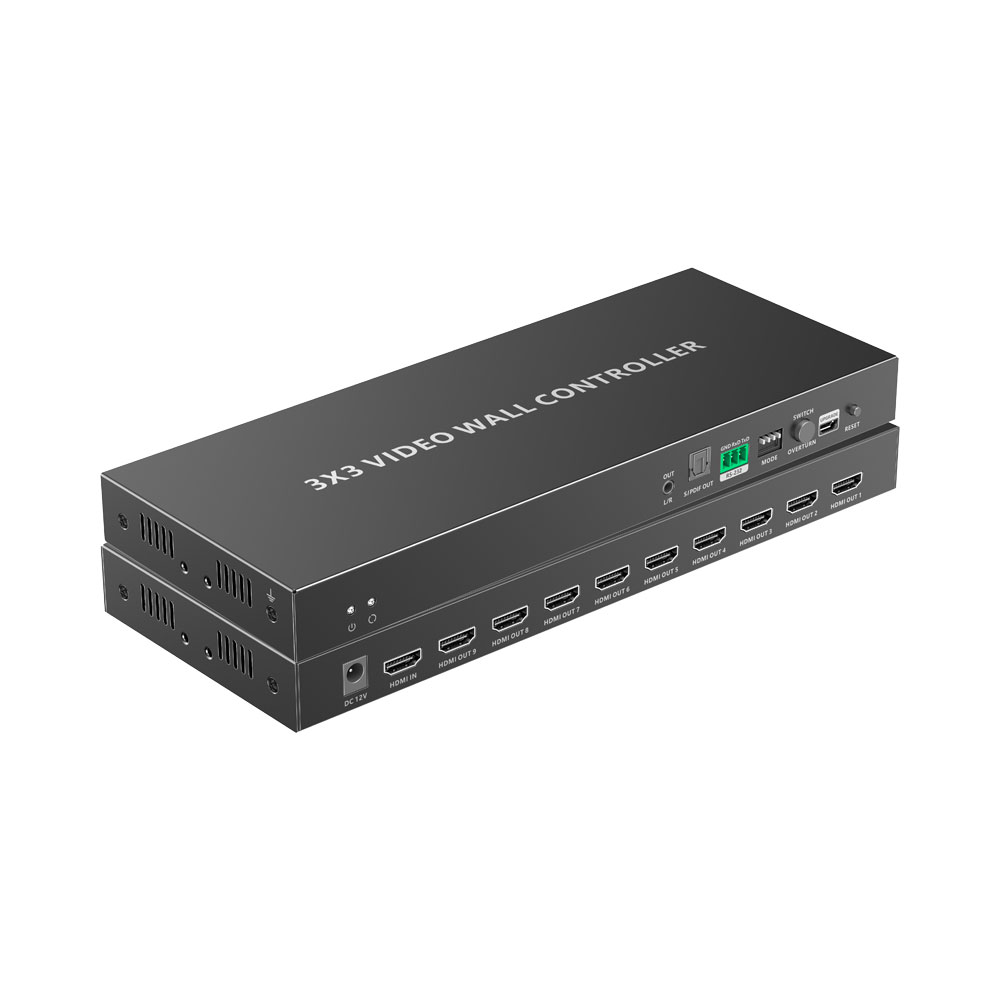

Lenkeng 3X3 VIDEO WALL CONTROLLER

Product Description

The Lenkeng 3X3 VIDEO WALL CONTROLLER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• HDMI Signal Input and 9× HDMI Signal Outputs
• 4096×2160 @60Hz Resolution Input, 1080p Output, Downwards Compatible
• Variety of Splicing Modes, Such as 1×2 / 1×3 / 1×4 / 2×2 / 2×3 / 3×2 / 2×4 / 4×2 / 3×3, etc.
• DIP Switch Switching Splicing Mode
• RS232 Control Instruction to Set Splicing Mode

Technical Specifications:
FEATURES

• HDMI Signal Input and 9× HDMI Signal Outputs
• 4096×2160 @60Hz Resolution Input, 1080p Output, Downwards Compatible
• Variety of Splicing Modes, Such as 1×2 / 1×3 / 1×4 / 2×2 / 2×3 / 3×2 / 2×4 / 4×2 / 3×3, etc.
• DIP Switch Switching Splicing Mode
• RS232 Control Instruction to Set Splicing Mode
• 3.5mm Left/Right Channel Audio Output
• S/PDIF Audio Output
• 180-Degree Rotation of HDMI Display Image in 2×2 / 2×3 / 2×4 Mode (For When the Upper Displays Are Installed Upside Down)
• Firmware Upgrading via Micro USB Port
• Lightning, Surge and ESD Protection

SPECIFICATIONS

Video Signal
• HDMI Input: 1× HDMI
• HDMI Output: 9× HDMI
• Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
• Resolutions:
Input: 4096×2160 @24/25/30/50/60Hz, 3840×2160 @24/25/30/50/60Hz, 3440×1440 @60Hz, 2560×1600 @60Hz, 2560×1440 @60Hz, 2560×1080 @60Hz, 2048×1536 @60Hz, 1920×1200 @60Hz, 1080p @24/25/30/50/60Hz
• Output: 1080p @30/60Hz

Audio Output
• 3.5mm Left/Right Audio Output – PCM
• S/PDIF Audio Output – PCM
• HDMI Output Audio – PCM

Splice / Display Wall Settings
• Supported Splice Modes: 1×2, 1×3, 1×4, 2×2, 2×3, 3×2, 2×4, 4×2, 3×3 (and Other Layout Variations)
• Control of Splice Mode: DIP Switch or RS-232 (GND / RxD / TxD), with Baud Rate 9600. RS232 Control Enabled Only When Dip Switch is Set to 1111.

Power
• Power Supply: DC 12V 2A
• Power Consumption: <18W

Operating Environment
• Working Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity: 0~90% RH (Non-Condensing)

Physical Properties
• Housing: Metal / Iron (Black)
• Weight: 775g
• Dimensions (L × W × H): 265 × 105 × 25mm

Protection
• Lightning Protection, Surge Protection, ESD Protection (ESD per IEC61000-4-2 Standard)
