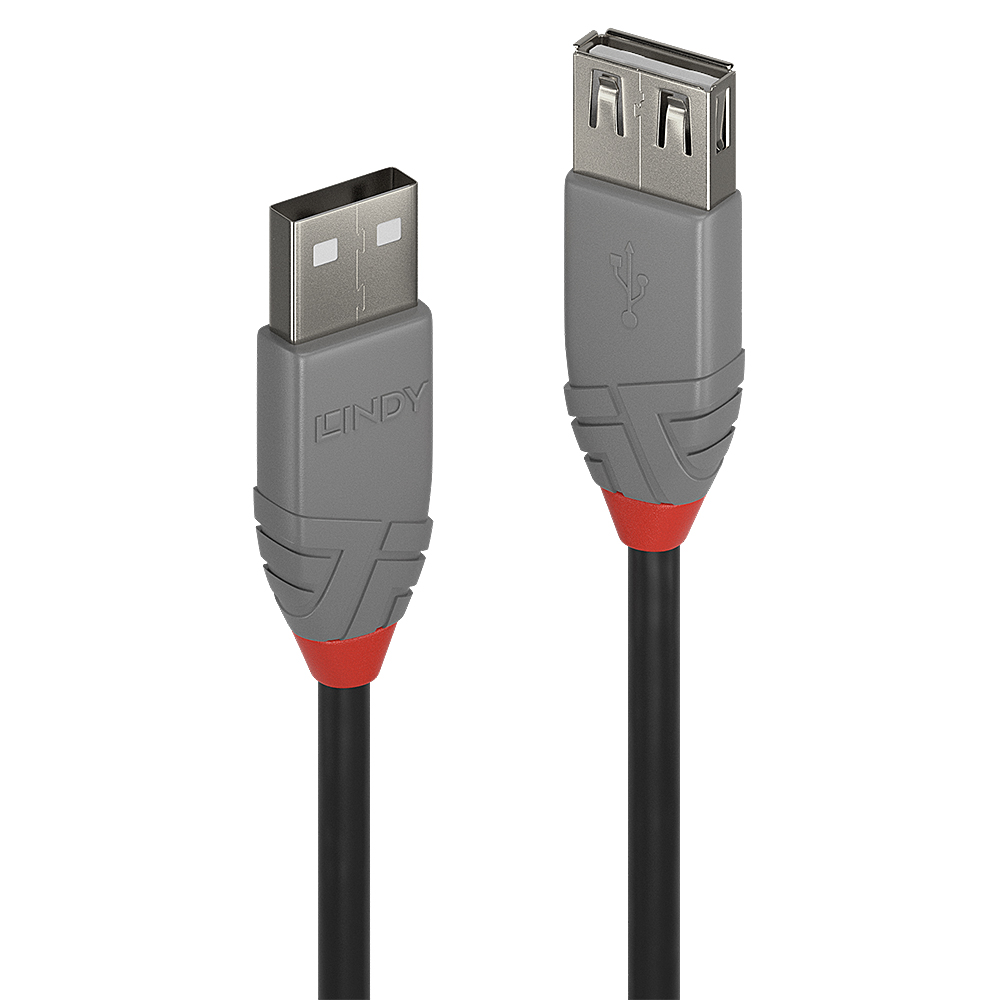

Lindy 1M PASSIVE USB2.0 EXT CBL-ANTHRA (36702)

Product Description

The Lindy 1M PASSIVE USB2.0 EXT CBL-ANTHRA (36702) is a high-performance solution from Lindy, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Professional choice USB2.0 Type A Extension cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• USB2.0, 480Mbps

Technical Specifications:
FEATURES

• Professional choice USB2.0 Type A Extension cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• USB2.0, 480Mbps
• 10 year warranty

CONNECTORS

• Connector A: USB2.0 Type A Male
• Connector B: USB2.0 Type A Female
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: 24K Gold
• Dimensions USBA Male (approx.) WxDxH: 15.5 x 35 x 7.8mm
• Dimensions USB A Female (approx.) WxDxH: 17 x 35 x 9.8mm

CABLE CONSTRUCTION

• Length: 1m
• Standard: USB2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.4mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/28AWG
• Shielding: Aluminium Magnesium Braid

SPECIFICATIONS

• Supported Bandwidth: 480Mbps
• Nominal Attenuation: 5.8db/km
• Minimum Bend Radius: 16mm
• Operating Temperature: 0°C – 60°C
• Storage Temperature: 0°C – 60°C
