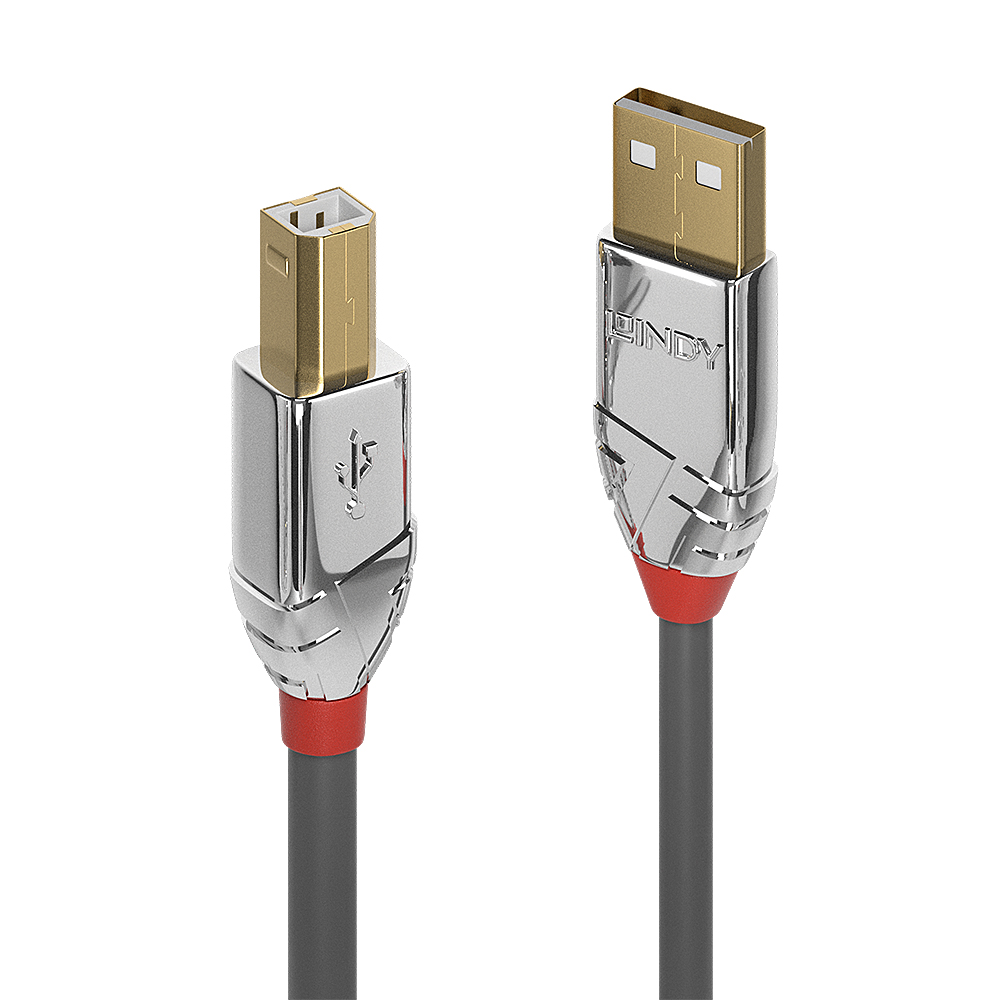

Lindy 3M USB2.0 AM TO BM CROMO L CABLE (36643)

Product Description

The Lindy 3M USB2.0 AM TO BM CROMO L CABLE (36643) is a high-performance solution from Lindy, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Superior performance and design USB2.0 Type A to B cable
• Supports data transfer speeds up to 480Mbps
• Chrome design ABS housing, gold plated connectors and contacts
• Double shielded cable, corrosion resistant, high performance tinned copper conductors
• 10 year warranty

Technical Specifications:
FEATURES

• Superior performance and design USB2.0 Type A to B cable
• Supports data transfer speeds up to 480Mbps
• Chrome design ABS housing, gold plated connectors and contacts
• Double shielded cable, corrosion resistant, high performance tinned copper conductors
• 10 year warranty

CONNECTORS

• Connector A: USB2.0 Type-A Male
• Connector B: USB2.0 Type-B Male
• Housing Material: Chrome Plated, ABS
• Shielding in head shell: Tinplate
• Connector Plating: Gold 1µm
• Pin Construction: Brass
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:
A: 16x35x8.3mm
B: 11.8x35x10.2mm

CABLE CONSTRUCTION

• Length: 3m
• Standard: USB2.0
• Colour: Grey
• Type: Round
• Jacket Diameter: 4.6mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 24AWG
• Conductor Gauge Data: 28AWG
• Shielding: Tinned Copper Braid 70%

SPECIFICATIONS

• Supported Bandwidth: 480Mbps
• Nominal Attenuation: 0.5-400MHz < 5.8dB
• Minimum Bend Radius: 55mm
• Operating Temperature: -20°C – 80°C
• Storage Temperature: -25°C – 85°C
