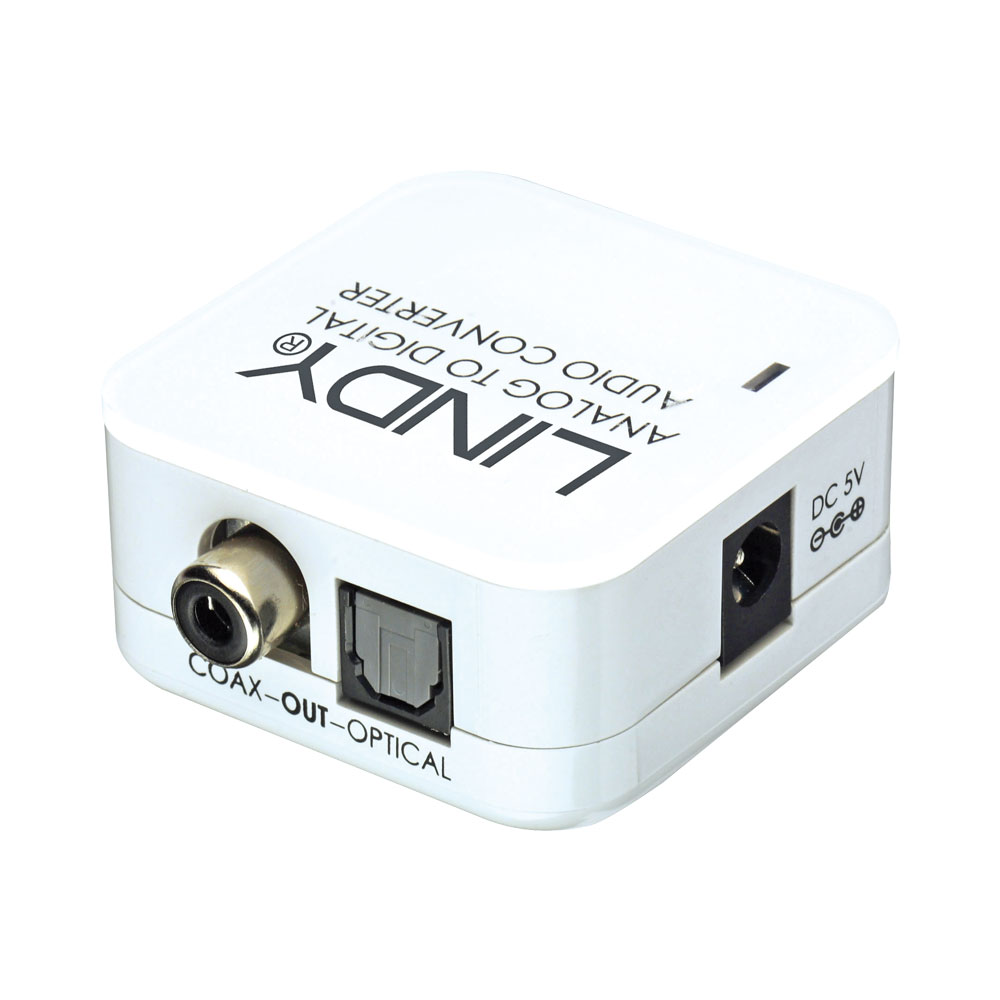

Lindy ANALOGUE STEREO-SPDIF AUDIO CONVERTER(70409)

Product Description

The Lindy ANALOGUE STEREO-SPDIF AUDIO CONVERTER(70409) is a high-performance solution from Lindy, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Convert analogue stereo audio signals to digital coaxial or optical
• Supports uncompressed digital LPCM signals
• Digital Coaxial and Toslink (Optical) outputs for a dual connectivity and splitting solution
• Minimalistic, compact design and seamless functionality
• SPECIFICATIONS

Technical Specifications:
FEATURES

• Convert analogue stereo audio signals to digital coaxial or optical
• Supports uncompressed digital LPCM signals
• Digital Coaxial and Toslink (Optical) outputs for a dual connectivity and splitting solution
• Minimalistic, compact design and seamless functionality

SPECIFICATIONS

• Audio Interface: RCA (Phono)
• Chipset: MIC-SN75179B+, MIC-74HC04
• Supported Audio: LPCM
• Maximum Supported Audio Sample Rate: 48kHz
• Frequency Response: ±0.5dB
• Signal to Noise Ratio: 90 dB
• Special Features: Output Signal Switch

CONNECTORS

• Input: L/R Analogue (Phono)
• Output: Toslink (Optical), SPDIF (Coaxial)
• Power: 5.5/2.1mm DC Socket

PHYSICAL PROPERTIES

• Dimensions (Approx.) WxDxH: 46x46x23.5mm
• Housing Material: Plastic
• Net Weight: 0.1kg
• Operating Temperature: 0°C – 40°C
• Storage Temperature: -20°C – 60°C
• Humidity: 20~90% RH (non-condensing)
• Power Requirements: 5VDC 1.2A
