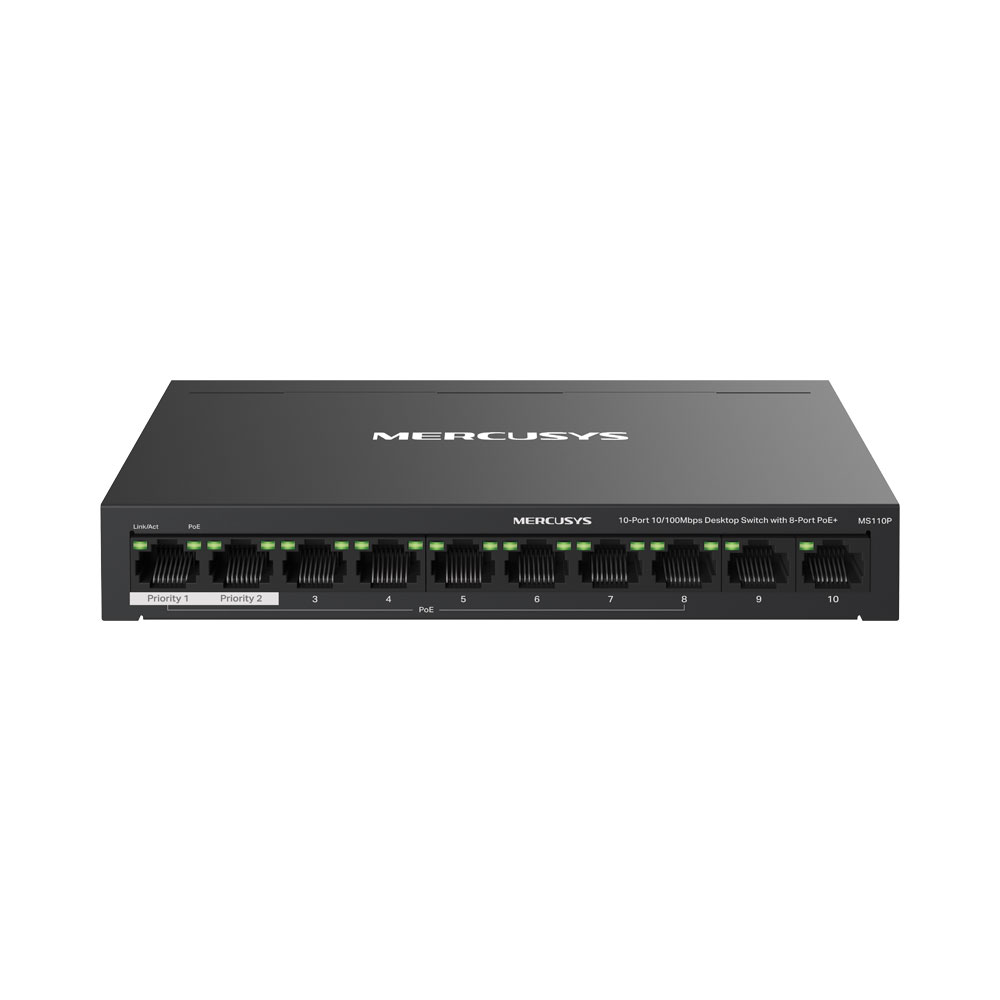

Mercusys 10-PORT DESKTOP SWITCH WITH 8-PORT POE+

Product Description

The Mercusys 10-PORT DESKTOP SWITCH WITH 8-PORT POE+ is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8× PoE+ Ports – Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 65W PoE Power Budget – Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment
• PoE Auto Recovery – Automatically reboots your dropped or unresponsive PoE powered devices
• Fast Ethernet Connectivity – 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems
• Extend Mode up to 250m – Extends PoE transmission distance up to 250m for flexible camera and device placement

Technical Specifications:
FEATURES

• 8× PoE+ Ports – Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 65W PoE Power Budget – Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment
• PoE Auto Recovery – Automatically reboots your dropped or unresponsive PoE powered devices
• Fast Ethernet Connectivity – 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems
• Extend Mode up to 250m – Extends PoE transmission distance up to 250m for flexible camera and device placement
• Durable Metal Housing – Robust metal design with desktop or wall-mount installation for long-term reliability

SPECIFICATIONS

DIMENSIONS (W × D × H)
• 171 × 98 × 27mm

POE PORTS
• 8× PoE+ Ports (Ports 1~8)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 65W

INTERFACES
• 10× 10/100Mbps RJ45 Ports
• Auto-Negotiation, Auto MDI/MDIX

EXTERNAL POWER SUPPLY
• External Power Adapter (Output: 53.5V 1.31A)

INSTALLATION
• Desktop
• Wall Mount

STANDARDS AND PROTOCOLS
• IEEE 802.3x Flow Control

DATA RATES
• 10/100Mbps at Half-Duplex
• 20/200Mbps at Full-Duplex

JUMBO FRAME
• 2KB

MAC ADDRESS TABLE
• 2K

MAX HEAT DISSIPATION
• 10.064 BTU/h (No PD Connected)
• 263.568 BTU/h (With 65W PD Connected)

ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing
