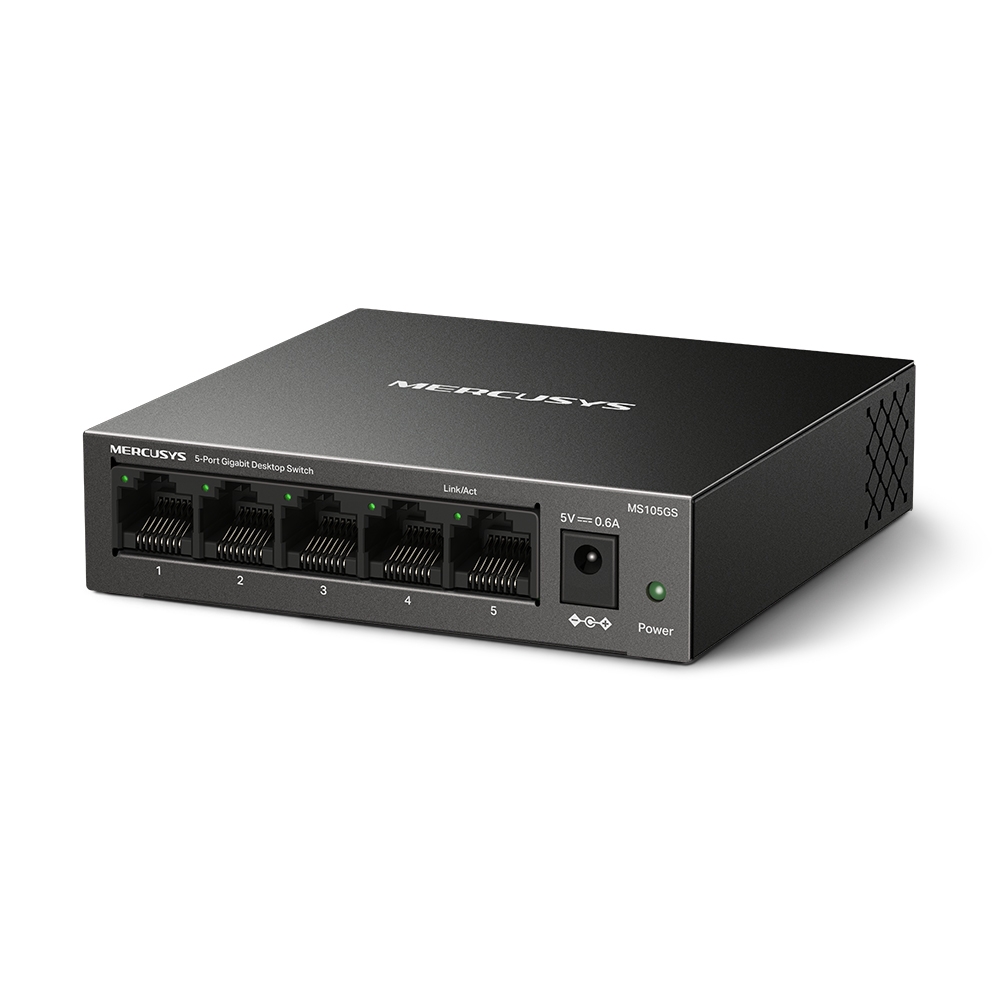

Mercusys 5P GB DESKTOP SWITCH

Product Description

The Mercusys 5P GB DESKTOP SWITCH is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 5× Gigabit RJ45 Ports – High-speed wired connectivity for multiple devices
• Auto-Negotiation & Auto MDI/MDIX – Seamless compatibility with connected devices
• Plug-and-Play Operation – No configuration required for quick setup
• Steel Housing Design – Durable construction with efficient heat dissipation
• Fanless Operation – Silent performance ideal for home and office use

Technical Specifications:
FEATURES

• 5× Gigabit RJ45 Ports – High-speed wired connectivity for multiple devices
• Auto-Negotiation & Auto MDI/MDIX – Seamless compatibility with connected devices
• Plug-and-Play Operation – No configuration required for quick setup
• Steel Housing Design – Durable construction with efficient heat dissipation
• Fanless Operation – Silent performance ideal for home and office use
• Green Ethernet Technology – Reduces power consumption for energy efficiency

SPECIFICATIONS

• Transfer Method: Store-and-Forward
• Interfaces: 5× 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
• Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
• Data Rates: 10/100/1000Mbps (Half Duplex), 20/200/2000Mbps (Full Duplex)
• Switch Capacity: 10Gbps
• MAC Address Table: 2K, Auto-Learning, Auto-Aging
• Buffer Capacity: 1Mbit
• Jumbo Frame: 15KB
• Flow Control: Yes
• Fanless: Yes
• LED Indicators: Power, Link/Act
• Power Supply: 5V 0.6A
• Max. Power Consumption: 3.614W
• Max. Heat Dissipation: 12.331BTU/h
• Dimensions: 99.8 × 98 × 25.1mm
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~95% RH, Non-Condensing
• Certification: CE, RoHS
