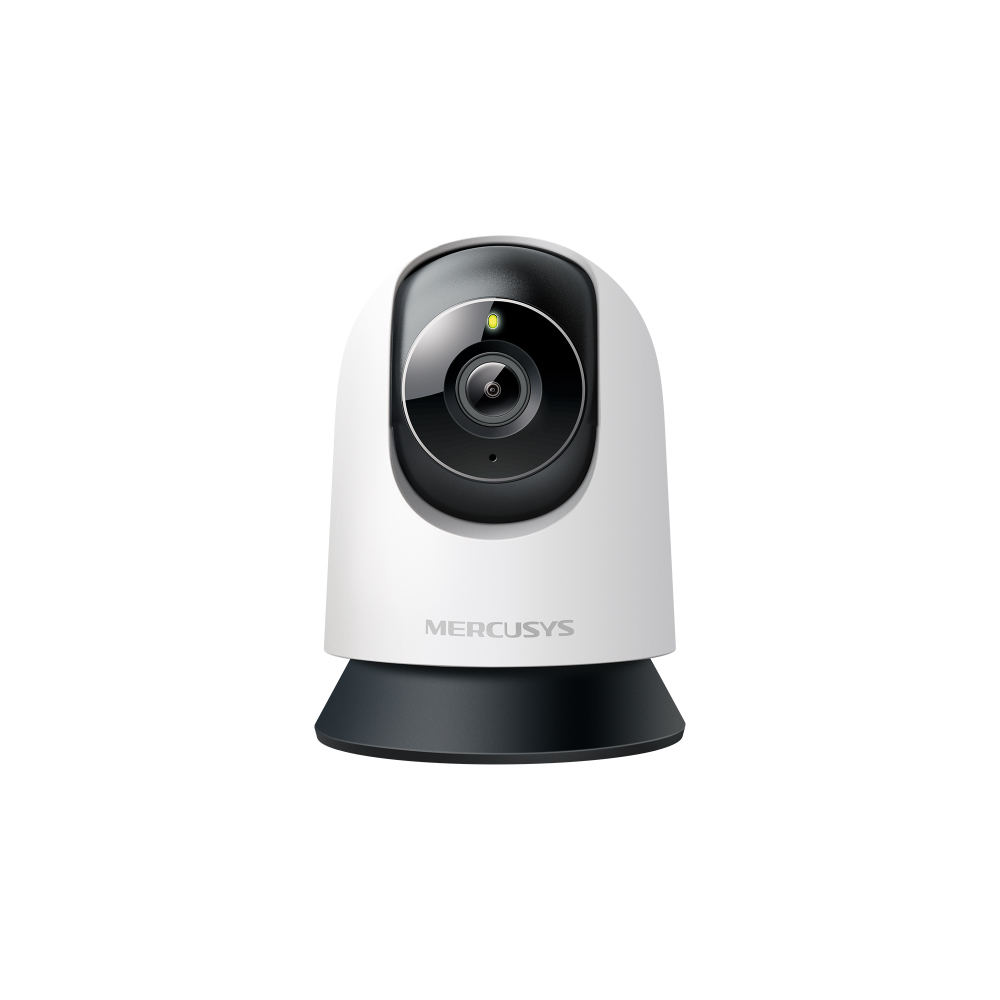

Mercusys INDOOR PAN/TILT 2K 360DEG CAM(RETAIL ONLY

Product Description

The Mercusys INDOOR PAN/TILT 2K 360DEG CAM(RETAIL ONLY is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 2K Resolution – Sharp 3MP video (2304 × 1296) for clear home monitoring
• Pan and Tilt Coverage – 360° horizontal viewing with motion tracking and no blind spots
• Smart AI Detection – Motion, person and baby crying detection with instant alerts
• Night Vision – Infrared night vision up to 12m for 24/7 surveillance
• Two-Way Audio – Built-in microphone and speaker for real-time communication

Technical Specifications:
FEATURES

• 2K Resolution – Sharp 3MP video (2304 × 1296) for clear home monitoring
• Pan and Tilt Coverage – 360° horizontal viewing with motion tracking and no blind spots
• Smart AI Detection – Motion, person and baby crying detection with instant alerts
• Night Vision – Infrared night vision up to 12m for 24/7 surveillance
• Two-Way Audio – Built-in microphone and speaker for real-time communication
• Flexible Storage – Supports microSD (up to 512GB) and cloud storage options

SPECIFICATIONS

CAMERA

• Image Sensor: 1/3″ Progressive Scan CMOS
• Lens: 4mm, F2.0
• Field of View: 86° (Diagonal), 73° (Horizontal), 40° (Vertical)
• Pan/Tilt Range: 340° Pan, 110° Tilt
• Night Vision: 850nm IR LED (up to 12m)
• Interface: RESET Button, microSD Slot (up to 512GB)

VIDEO AND AUDIO

• Resolution: 3MP (2304 × 1296)
• Frame Rate: 15/20/25/30fps (15fps default)
• Video Compression: H.264
• Digital Zoom: up to 10.8×
• Live View: Yes
• Audio: Built-in Microphone and Speaker
• Two-Way Audio: Yes
• Siren Volume: up to 88dB

STORAGE

• Local Storage: microSD Card Slot (up to 512GB)
• Cloud Storage: Mercusys Camera Care (Subscription Required)

DETECTION AND NOTIFICATIONS

• Detection Types: Motion, Person, Baby Crying
• Activity Zones: Yes
• Notifications: System Alerts

NETWORK

• Connectivity: Wi-Fi
• Wireless: IEEE 802.11 b/g/n (2.4GHz)
• Transmission Rates: 11Mbps (11b), 54Mbps (11g), 72.2Mbps (11n)
• Protocols: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
• RTSP: Yes
• ONVIF: Yes

SECURITY

• Encryption: 128-bit AES with SSL/TLS
• Wireless Security: WPA/WPA2-PSK

POWER

• Power Supply: 9V DC Adapter
• Input: 100~240V AC, 50/60Hz, 0.3A
• Output: 9V 0.6A

GENERAL

• Smart Integration: Google Assistant, Amazon Alexa
• Mounting Options: Tabletop, Ceiling Mount
• Operating Temperature: 0~40°C
• Storage Temperature: -40~60°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 0~90% RH (Non-Condensing)
• Dimensions: 78.4 × 78.4 × 105.6mm
• Certifications: CE, NCC, BSMI, NTRA, KC, RCM, ONVIF
