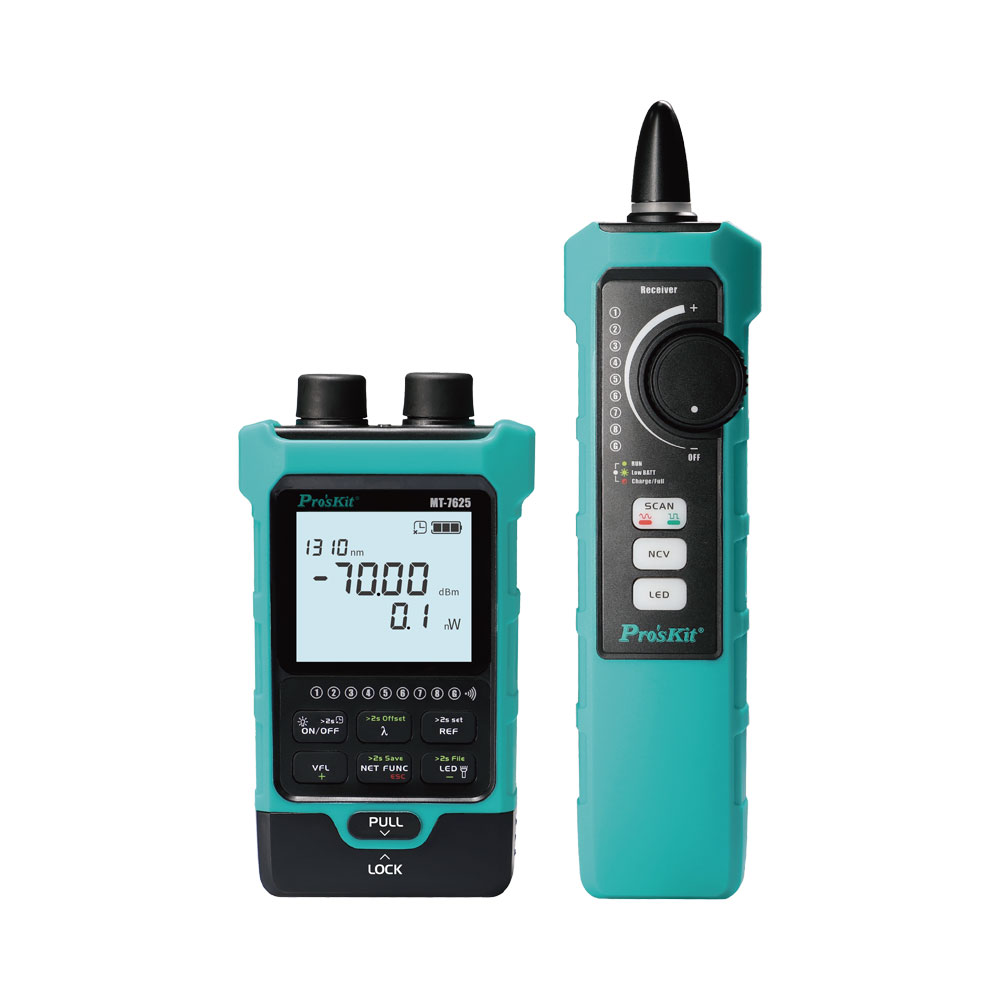

Proskit OPTICAL POWER METER & TONE PROBE KITS

Product Description

The Proskit OPTICAL POWER METER & TONE PROBE KITS is a high-performance solution from Proskit, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• All-in-1 OPM and Tone Probe – Combines optical power measurement and cable tracing in one tool
• 10× Wavelength Power Meter – Supports multi-wavelength fibre testing for accurate diagnostics
• Visual Fault Locator – Quickly identifies fibre breaks bends and connection faults
• Dual-Mode Cable Mapping – Supports analogue and digital cable mapping modes
• Single-Way Plug Crimping Quality Test – Verifies correct termination and crimp quality

Technical Specifications:
FEATURES

• All-in-1 OPM and Tone Probe – Combines optical power measurement and cable tracing in one tool
• 10× Wavelength Power Meter – Supports multi-wavelength fibre testing for accurate diagnostics
• Visual Fault Locator – Quickly identifies fibre breaks bends and connection faults
• Dual-Mode Cable Mapping – Supports analogue and digital cable mapping modes
• Single-Way Plug Crimping Quality Test – Verifies correct termination and crimp quality
• 1-on-2 LAN Cable Testing – Tests one LAN port against two endpoints for faster verification
• Dual LED Light – Integrated illumination for low-light working environments
• Non-Contact Voltage Detection (NCV) – Improves safety during cable testing
• Data Upload Function – Enables transfer of test results for analysis and reporting
• Rechargeable Li-ion Battery with USB Type-C Charging – Provides reliable portable power for field use

SPECIFICATIONS

Optical Power Meter SPECIFICATIONS and Functions
• Detector Type: InGaAs
• Wavelength Range: 700~1700nm
• OPM Connector: 2.5mm Universal Connector
• Measurement Wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm
• Measurement Range: -70~+10dBm
• Accuracy* (1550nm and 1310nm): ±0.2dB
• Accuracy* (850nm, 980nm, 1300nm, 1490nm, 1625nm, 1650nm): ±0.3dB
• Accuracy* (1270nm and 1577nm): ±1dB
• Resolution: 0.01dB
• Measurement Units: dB, dBm, mW, uW, nW
• Modulation Detection: 270Hz, 330Hz, 1kHz, 2kHz (only for ProsKit light source products)
• Data Storage: 500× Groups
• Wavelength Memory: Yes
• User Self-Calibration: Yes
• REF Function: Yes
• Back Light: Yes
Visual Fault Locator Functions
• Output Power: 15mW
• Testing Distance**: 10~12km @SM
• VFL Connector: 2.5mm Universal Connector
• VFL Wavelength: 650 ±20nm
• Operation Mode: CW and 2Hz Glint
Network Line Sequence Function
• Applicable Network: UTP and STP Network Cable
• Cable Interface: RJ45 (8P8C)
• Test Type: Network Cable Sequence
• Testing Distance: 600m
Audio Hunt Function
• Hunting Mode: Analogue and Digital
• Detection Frequency: 455kHz
• Detection Distance: 600m
Line Pressing Function
• Crimp Detection: RJ45 8-Pin >10cm
General Functions
• Illumination: 1× LED
• Auto Power-Off: Yes (after no operation for 10 minutes)
• Battery Level Indicator: Yes
• Charging Socket: USB Type-C
• Charging Time: 30hours (OPM only)
• Power Source: Li-ion 3.7V 450mAh
• Operating Temperature: -10~50°C
• Operating Humidity: <90% RH
• Size: 114 × 65 × 29mm
• Weight: 120g
Receiver SPECIFICATIONS and Functions
• Power Switch: Knob Operation
• Function Selection: 3× Silicone Buttons
• Response Frequency: 455kHz
• Volume: ≥85dB
• Receiver Signal: Analogue and Digital
• Speaker Audio (Analogue): 633Hz, 833Hz
• Speaker Audio (Digital): 833Hz, 1500Hz
• Sensitivity Adjustment: Knob Control
• Test Interface: 1× RJ45
• Line Sequence Indicator: 9× LEDs
• Status Indicator: 3× LEDs
Non-Contact Electricity Test Function
• Non-Contact Voltage Detection: AC 90~1000V
• Indicator Light: 1× LED Ring
• Speaker Audio: 1500Hz
LED Light Functions
• Illumination: 1× LED
• Headset Jack: Φ3.5mm
• Charging Socket: USB Type-C
• Power Source: Li-ion 3.7V 450mAh
• Working Current: ≤250mA
• Size: 180 × 45 × 26mm
• Weight: 100g
*At 23°C ±2°C, 40%~60%RH with Standard Testing Fibre.
Accuracy Range: +3dBm~-60dBm, Other References Are As Follows:
±0.8dB: +3dBm~+6dBm, -60dBm~-65dBm @1550nm
±3.0dB: +6dBm~+10dBm, -65dBm~-70dBm @1550nm
**Test Distance Will Be Influenced By Environmental Conditions and Visual Sensitivity.
