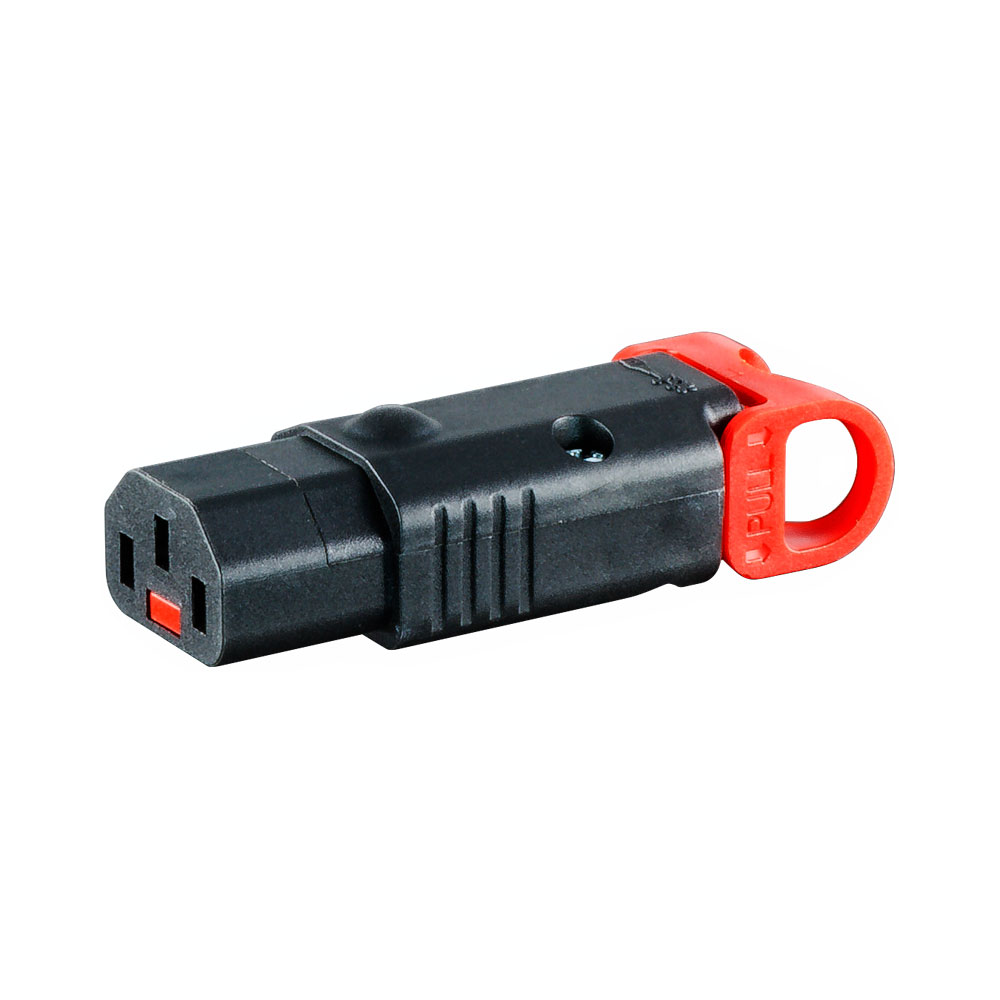

Scolmore C13F REWIREABLE LOCKABLE IEC + LSZH

Product Description

The Scolmore C13F REWIREABLE LOCKABLE IEC + LSZH is a high-performance solution from Scolmore, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Locking C13 IEC Connector – Prevents accidental power loss with >100N retention force
• Rewireable Design – Flexible installation and easy field termination
• Fits Standard C14 Inlets – Universal compatibility
• Anti-Vibration Construction – Ideal for racks, cabinets and mobile equipment
• Easy-Pull Lock Release Handle – Quick, controlled disconnection

Technical Specifications:
FEATURES

• Locking C13 IEC Connector – Prevents accidental power loss with >100N retention force
• Rewireable Design – Flexible installation and easy field termination
• Fits Standard C14 Inlets – Universal compatibility
• Anti-Vibration Construction – Ideal for racks, cabinets and mobile equipment
• Easy-Pull Lock Release Handle – Quick, controlled disconnection
• LSZH Housing – Low smoke, zero halogen for safer installations
• Cold-Condition Ready – Suitable for low-temperature environments

SPECIFICATIONS

Electrical Ratings: 10A 250V
Mechanical and Electrical
• Terminal Capacity: 3-Core Cable up to 1.5mm²
• Max. Cable Diameter: 8mm
• Dielectric Strength: 1.5kV Max.
• Withdrawal Force: >100N
• Protection Class: Class I (IEC EN 61140)
• Flammability Rating: UL94 V-0 Equivalent
Materials
• Housing and Chassis: Nylon PA66, LSZH (Black)
• Lock Lever and Handle: Polycarbonate (Red Handle)
• Terminals: Brass
• Screws: Steel, Nickel-Plated
• Spring and Locking Blade: Spring Steel
Dimensions
• Overall Length: Approx. 75mm
• Width: 30.1mm
• Height: 46.9mm
Compliance and Standards
• IEC / EN 60320-1
• UL 60320-1
• CSA C22.2
• AS/NZS 60320.1
