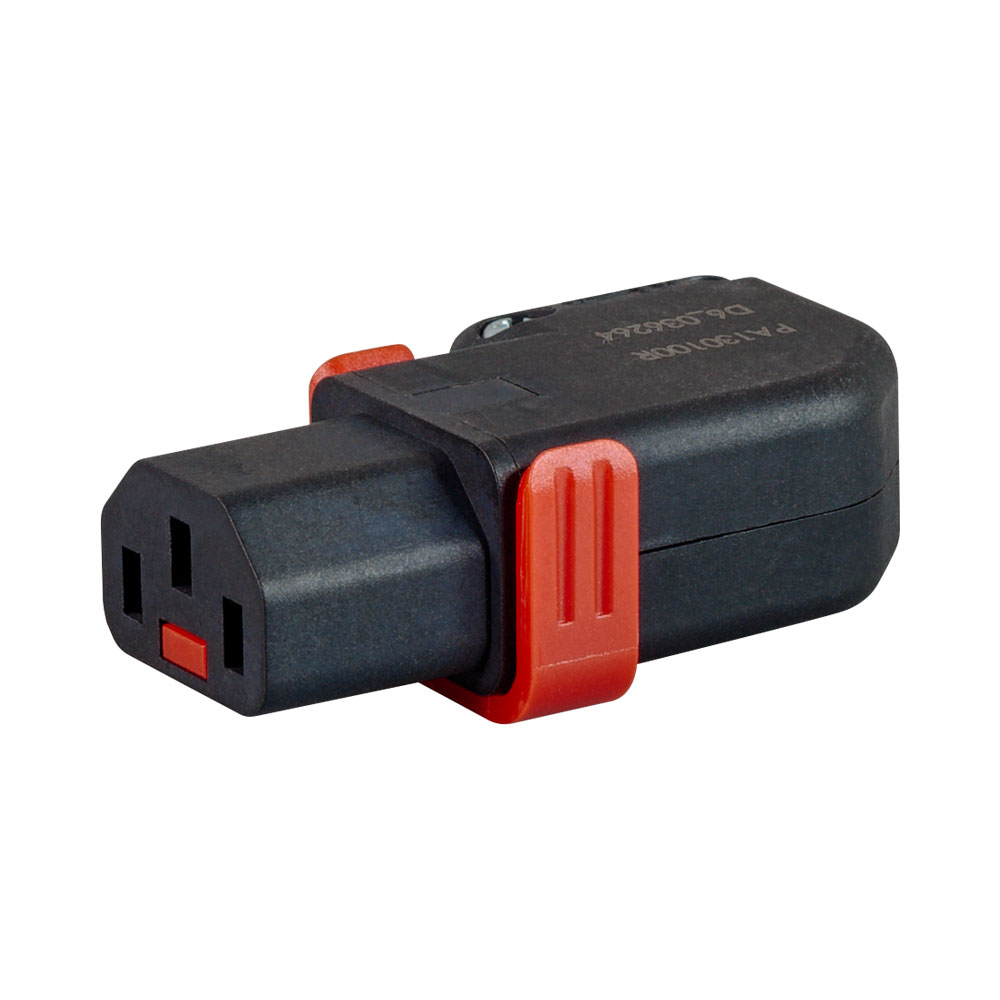

Scolmore IECLOCK FEMALE KETTLE LOCKABLE CONNECTOR – RIGHT-ANGLED AND REWIREABLE

Product Description

The Scolmore IECLOCK FEMALE KETTLE LOCKABLE CONNECTOR – RIGHT-ANGLED AND REWIREABLE is a high-performance solution from Scolmore, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Lockable IEC C13 Connector – Prevents accidental power loss
• Right-Angled Design – Perfect for tight rack and cabinet installations
• Rewireable Construction – Easy cable termination and maintenance
• Anti-Vibration Locking Mechanism – Stays connected in high-movement environments
• Easy-Grip Release Tab – Quick, safe disconnection when needed

Technical Specifications:
FEATURES

• Lockable IEC C13 Connector – Prevents accidental power loss
• Right-Angled Design – Perfect for tight rack and cabinet installations
• Rewireable Construction – Easy cable termination and maintenance
• Anti-Vibration Locking Mechanism – Stays connected in high-movement environments
• Easy-Grip Release Tab – Quick, safe disconnection when needed
• Dual-Screw Housing Design – Slotted and cross-head screws allow easy installation with common tools
• Cold-Condition Rated Appliance Inlet – Designed for reliable performance in low-temperature environments

SPECIFICATIONS

Electrical Ratings
• Rated Current and Voltage: 10A Max. @250V
• Dielectric Strength: 1.5kV Max.
• Withdrawal Force: >100N
Materials
• Outer Body and Chassis: Nylon (PA66), LSZH, RAL9004 Signal Black
• Cable Restraint: Nylon (PA66)
• Housing Screws and Cable Restraint Screws: Steel, Nickel Plated
• Lock Pivot Lever: Polycarbonate
• Red Handle: Polycarbonate LSZH, RAL3020 Traffic Light Red
• Terminal Block and Sliding Terminal: Brass
• Terminal Screws: Steel, Yellow Passivated
• Spring and Locking Blade: Spring Steel (Locking Blade Zinc Plated)
Terminal and Mechanical
• Terminal Capacity: 3-Core Cable, 1.5mm² Typical (up to 2.5mm² Max.)
• Torque Values: Terminal Screws: 0.4Nm, Strain Relief Clamping Screws: 0.3Nm
• Flammability Rating: Equivalent to UL94V-0
• Protection Class: Suitable for Class I Appliances, Complies with IEC EN 61140
Environmental
• Ambient Operating Temperature: 25°C
• Cold Condition Use: Suitable for Cold Environments
Physical Dimensions
• Overall Length: 60.4mm
• Body Width: 30.1mm
• Body Height: 21.1mm
• Connector Face Width: 22.7mm
• Pin Section Length: 21.1mm
Standards and Compliance
• EN 60320-1:2015 (KEMA-KEUR File: 35-102059)
• UL 60320-1 (UL File E475619)
• CSA C22.2 No. 60320-1-11
• AS/NZS 60320.1 (SAA File 151920)
