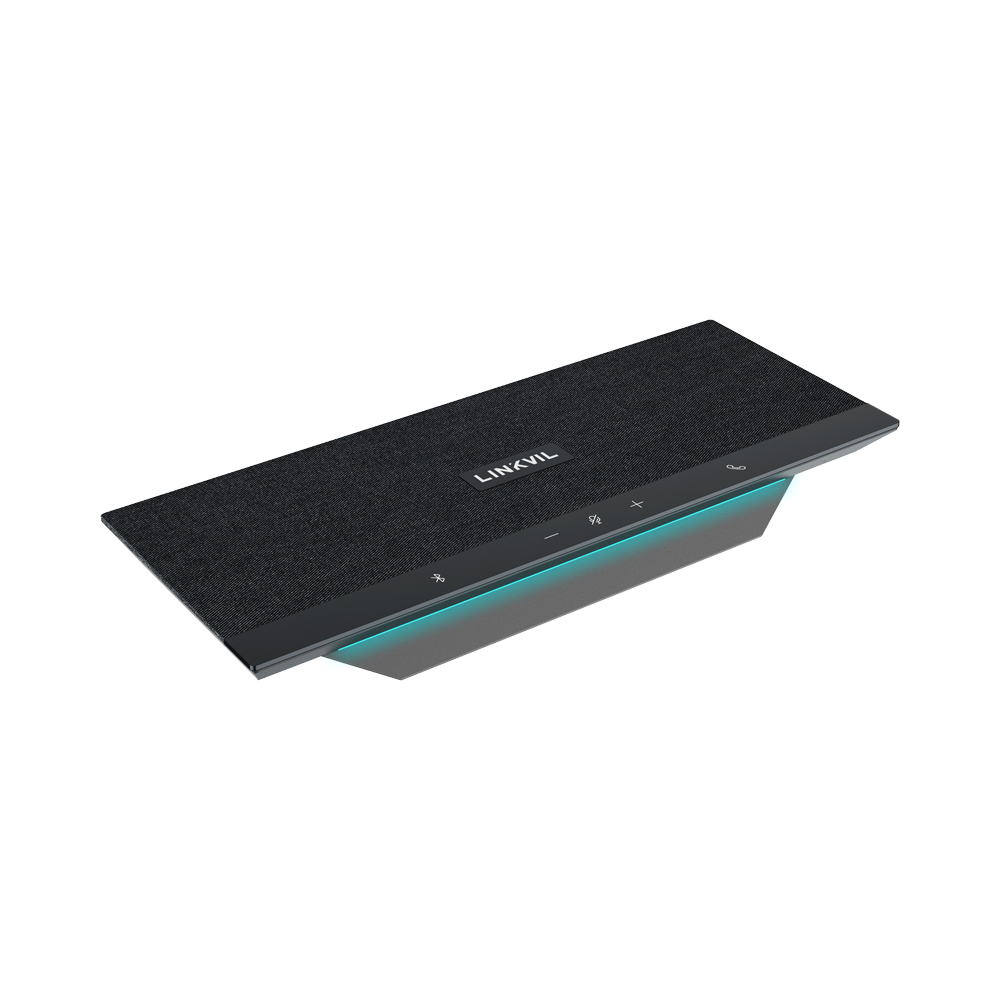

Linkvil CS40 5W CONFERENCING SPEAKERPHONE

Product Description

The Linkvil CS40 5W CONFERENCING SPEAKERPHONE is a high-performance solution from Linkvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Trio-mic with speaker – 5W speaker for medium meeting rooms with trio-omnidirectional microphones and up to 3m voice pickup, featuring ENC, ANS and AGC
• Flexible connectivity – Supports USB Type-A, USB Type-C and Bluetooth
• Wide compatibility – Works with mainstream softphone and UC platforms
• Instant access touch controls – Pickup/Hangup, Play/Pause, Volume Up/Down, Mute and Bluetooth with softphone/UC command support
• Multi-device support – Pair up to 8× devices and connect 2× simultaneously

Technical Specifications:
FEATURES

• Trio-mic with speaker – 5W speaker for medium meeting rooms with trio-omnidirectional microphones and up to 3m voice pickup, featuring ENC, ANS and AGC
• Flexible connectivity – Supports USB Type-A, USB Type-C and Bluetooth
• Wide compatibility – Works with mainstream softphone and UC platforms
• Instant access touch controls – Pickup/Hangup, Play/Pause, Volume Up/Down, Mute and Bluetooth with softphone/UC command support
• Multi-device support – Pair up to 8× devices and connect 2× simultaneously
• Elegant design – Fabric-covered speaker with a clean, premium finish
• Modern aesthetics – Ambient lighting enhances any workspace

SPECIFICATIONS

PEAKER

• Speaker Size: ø52mm
• Rated Power: 4Ω 5W
• Max Output Power: 8W
• RMS Power: 5W
• Sensitivity: 87dB ±2dB
• Frequency Range: 100Hz~20kHz
• Music Mode Bandwidth: 100Hz~20kHz
• Speak Mode Bandwidth: 100Hz~8kHz

MICROPHONE

• Type: 3× Omnidirectional Analogue Microphones
• Voice Pickup Range: Up to 3m
• Sensitivity: -32dBFS
• Frequency Range: 20Hz~8kHz
• SNR: >65dB

AUDIO

• Full Duplex: Supported
• ENC: Environmental Noise Cancellation
• ANS: Adaptive Noise Suppression
• AGC: Automatic Gain Control

CONNECTIVITY

• Connection: USB Type-A / USB Type-C and Bluetooth
• Bluetooth Version: 5.4
• Profiles: HSP V1.2, HFP V1.7, A2DP V1.2
• Operating Range: Up to 10m
• Pairing Capacity: Up to 8 Devices
• Simultaneous Connections: 2×

BATTERY

• Capacity: 4,000mAh
• Charging Time: 3.5 Hours
• Max Charging Current: DC5V 2A
• Talk Time: Up to 10 Hours
• Music Playback: Up to 8 Hours
• Standby Time: Up to 16 Hours

PHYSICAL

• Controls: 5× Touch Buttons
• Power: USB / Lithium Polymer Battery
• Dimensions: 300 × 120 × 38mm
• USB Cable Length: 1.2m
• Weight: 526g

ENVIRONMENT

• Operating Temperature: -10~60°C
• Storage Temperature: -20~70°C
• Operating Humidity: 10~95% RH
