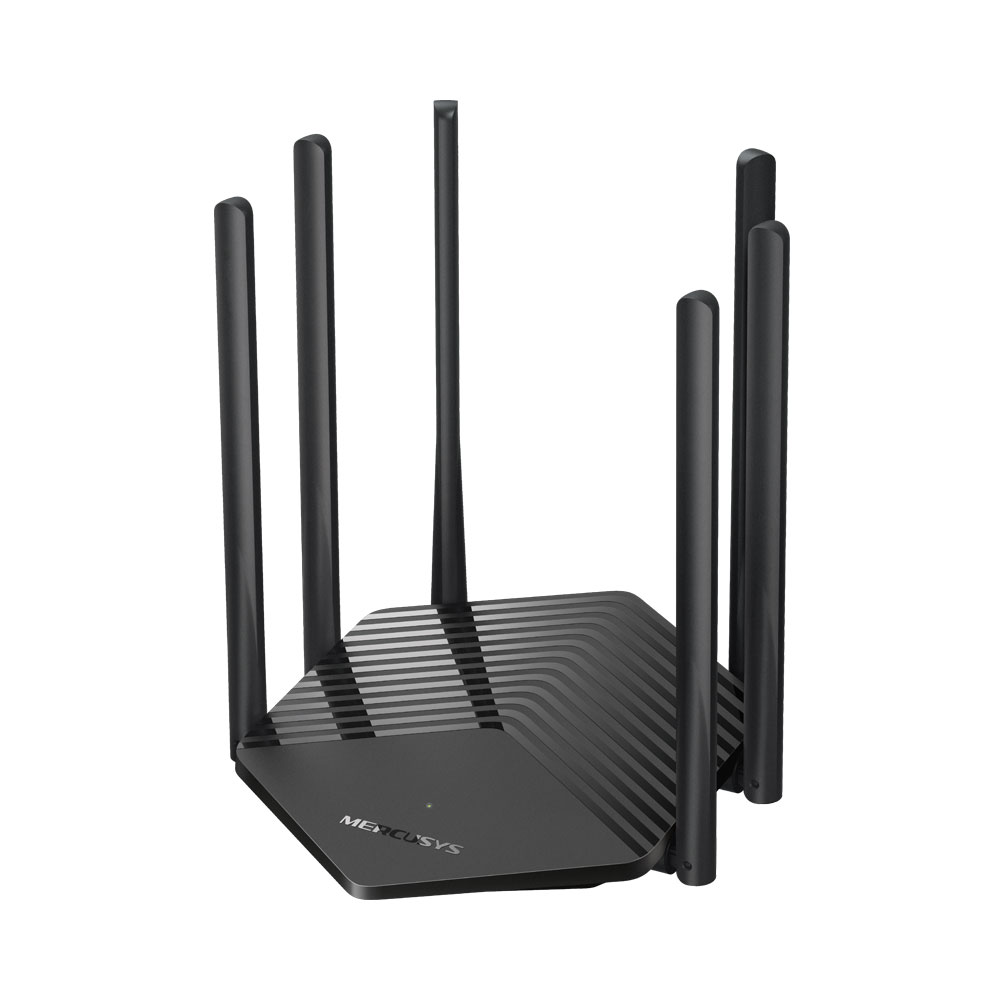

Mercusys AC1900 2-PORT WIRELESS DUAL BAND

Sold: 0

Commercial-grade Mercusys AC1900 2-PORT WIRELESS DUAL BAND equipment engineered for professional reliability and high-performance system integration.

SKU: NET-MER-MR50G Category: Other IT Equipment Tag: Mercusys

Product Description

The Mercusys AC1900 2-PORT WIRELESS DUAL BAND is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

FEATURES
Fast Wi-Fi – Simultaneous 600Mbps 2.4GHz and 1300Mbps 5GHz connection for 1.9Gbps of total available bandwidth
Maximum Range – Six high gain antennas ensure widespread Wi-Fi coverage and a stable connection
Easy Installation – Intuitive webpage guides you through the setup process in minutes
Gigabit Ports – One Gigabit WAN port and two Gigabit LAN ports provide up to 10x faster speeds than standard Ethernet connections
SPECIFICATIONS

Technical Specifications:
FEATURES

• Fast Wi-Fi – Simultaneous 600Mbps 2.4GHz and 1300Mbps 5GHz connection for 1.9Gbps of total available bandwidth
• Maximum Range – Six high gain antennas ensure widespread Wi-Fi coverage and a stable connection
• Easy Installation – Intuitive webpage guides you through the setup process in minutes
• Gigabit Ports – One Gigabit WAN port and two Gigabit LAN ports provide up to 10x faster speeds than standard Ethernet connections

SPECIFICATIONS

• Ports: 1 Gigabit WAN Port, 2 Gigabit LAN Ports
• Button: WPS/Reset Button
• External Power Supply: 12V/1A
• Dimensions: (W x D x H) 175.6 x 157.2 x 45 mm
• Antennas: 6 Fixed Omni-Directional Antennas
• Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4 – 2.5GHz, 5.15 – 5.25GHz
• Signal Rate:600Mbps at 2.4GHz, 1300Mbps at 5GHz
• Transmit Power: CE:<20dBm (2.4GHz), <23dBm (5.15 – 5.25GHz), FCC:<30dBm(2.4 GHz & 5GHz)
RECEPTION SENSITIVITY
• 5GHz:
– 11a 6Mbps: -98dBm, 11a 54M: -78dBm
– 11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
– 11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
– 11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm
• 2.4GHz:
– 11g 6Mbps: -97dBm, 11a 54M: -77dBm
– 11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
– 11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm
– Wireless Function: Enable/Disable Wireless Radio, Wireless Statistics
– Wireless Security: WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
